Self-Priming Pump

What is a Self-Priming Pump?

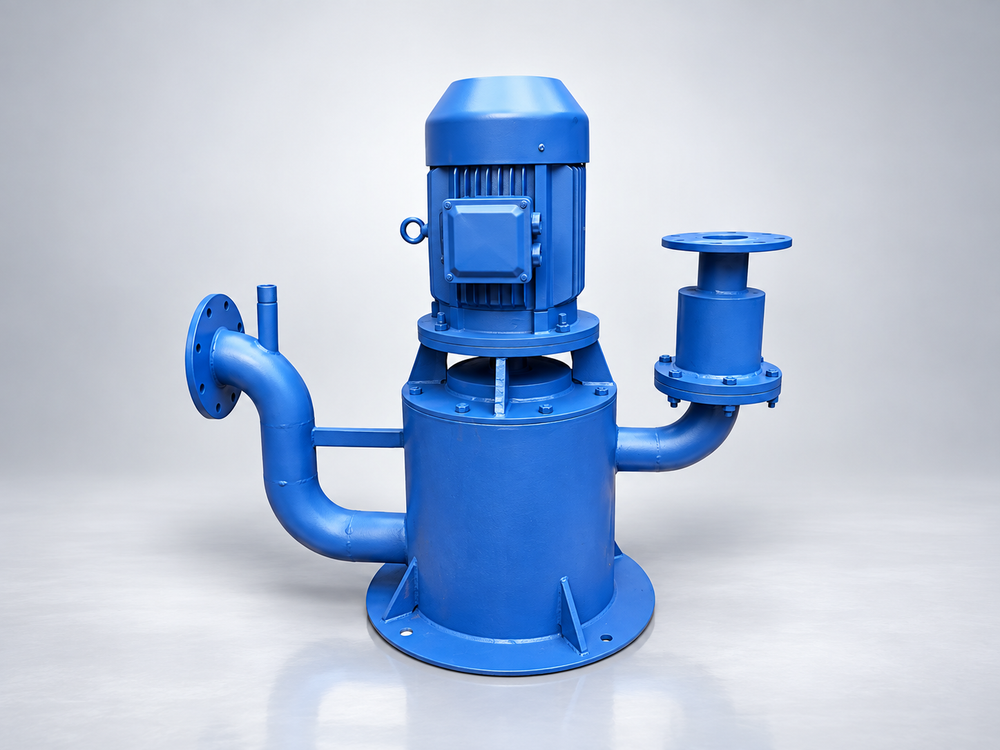

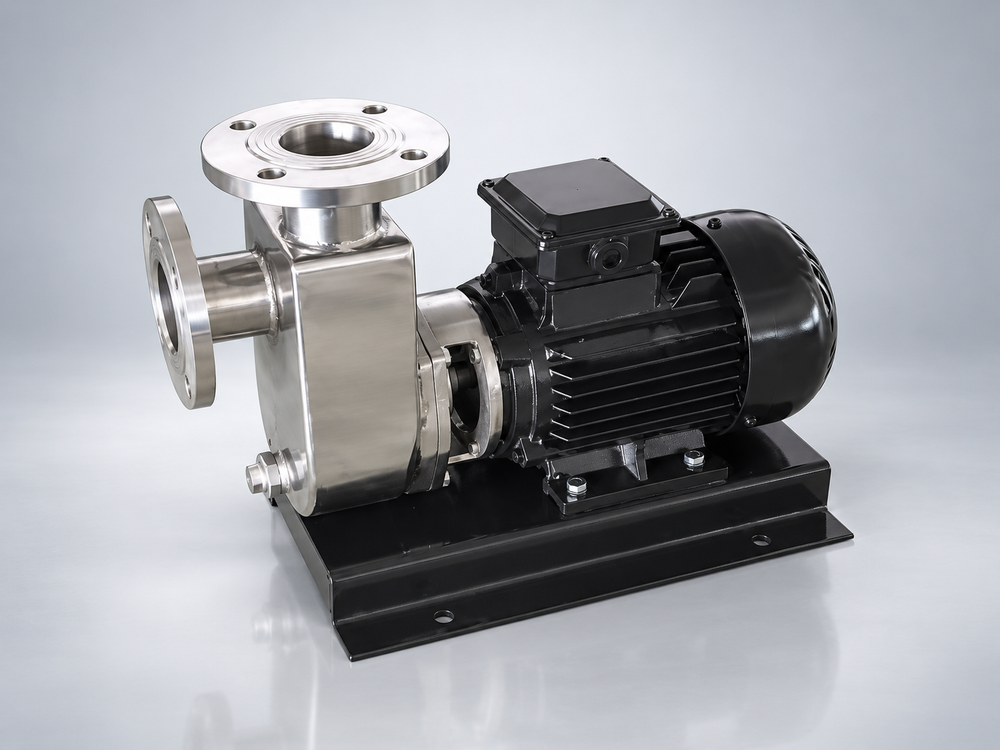

A self-priming pump is designed to establish liquid flow by clearing air from the suction side under specified startup conditions. The required initial filling and installation procedure depend on the model; self-priming does not mean unrestricted dry running. HENVO lists CYZ oil-transfer, ZX chemical or sludge, ZW sewage, WFB centrifugal and SFBX transfer configurations. Selection must distinguish these intended duties and consider liquid level, suction piping, priming conditions and the required delivery flow and head together.

Applications

Oil transfer

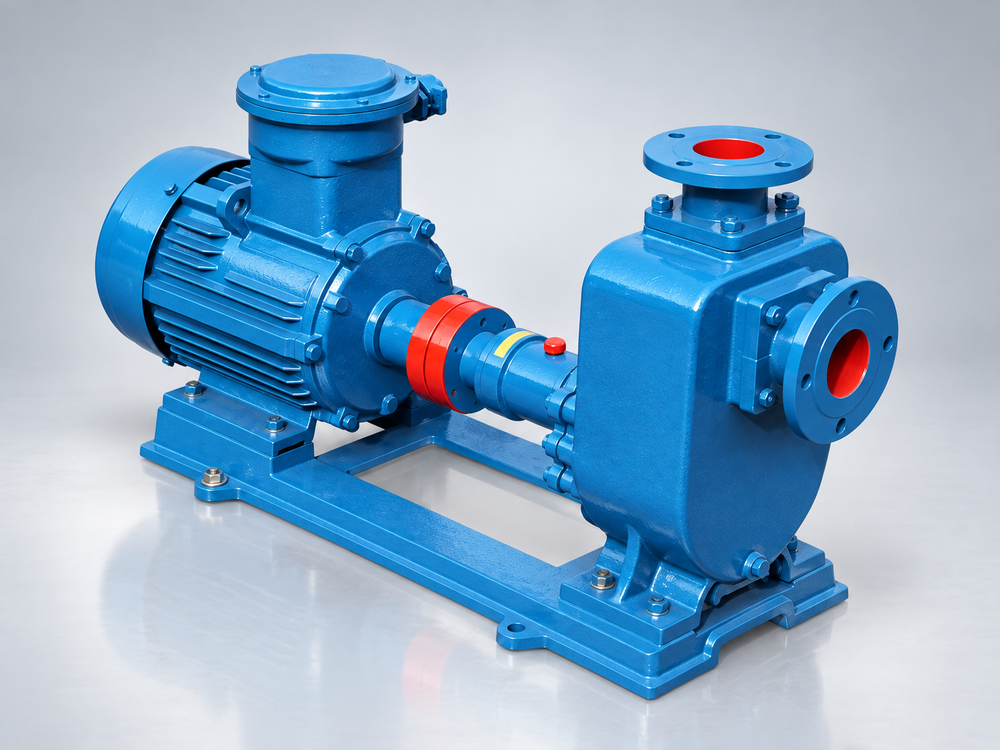

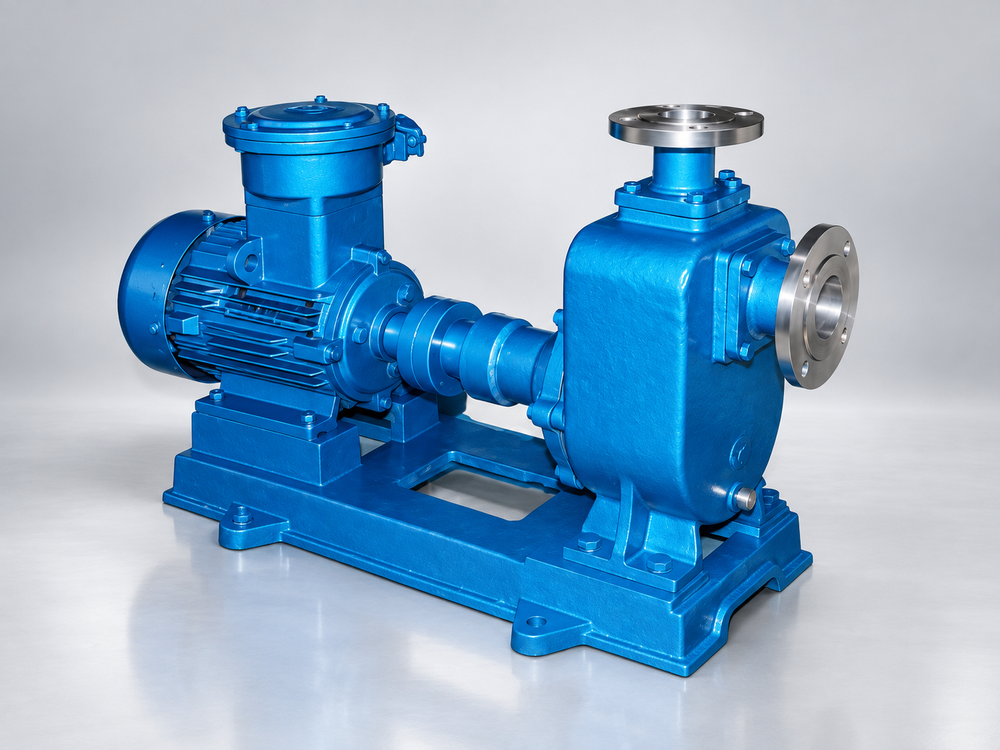

CYZ oil and horizontal listings provide a starting point for oil-transfer requirements. Confirm the liquid grade, suction arrangement and temperature for the proposed model.

Chemical-liquid transfer

The ZX Self Priming Chemical Pump listing identifies chemical-transfer enquiries. Liquid composition, concentration and wetted-material compatibility need separate confirmation.

Sewage and sludge transfer

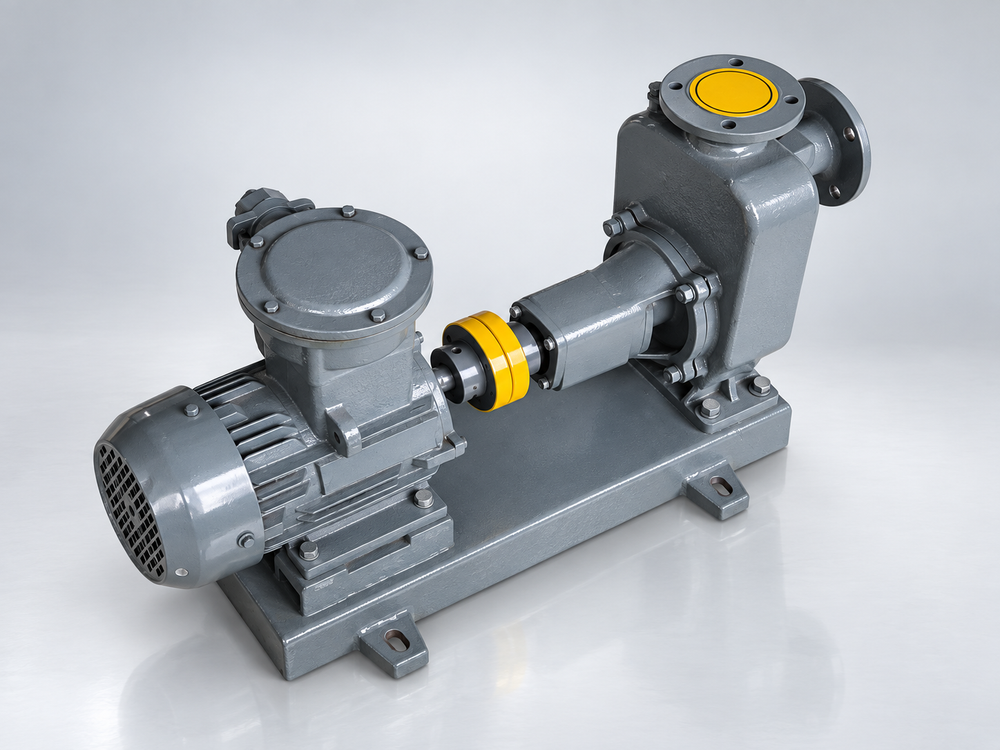

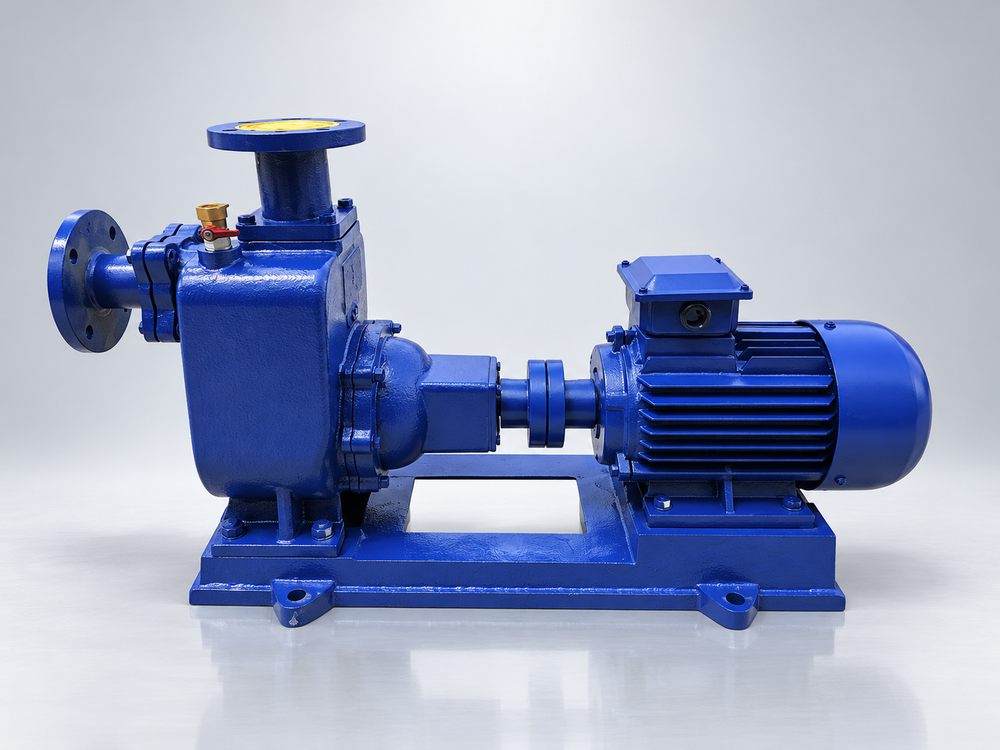

ZW sewage and ZX sludge are distinct product listings. Provide the actual solids, particle size and liquid properties rather than assuming the two models share the same capability.

How to Select the Right Pump?

Selection depends on the following operating conditions. Keep the units and pressure reference explicit when sending your requirement.

  1. Measure suction conditions

    Give the lowest liquid level relative to the pump, inlet pressure and suction-pipe layout. A catalogue suction-lift figure is not a guarantee for every installation.

  2. Confirm the priming procedure

    Ask about initial casing fill, venting, retained liquid and restart conditions for the selected model. Do not infer dry-running capability from the category name.

  3. Identify the intended medium

    Choose the oil, chemical, sewage or sludge selection path first. Supply temperature, viscosity, concentration and solids details where relevant.

  4. Define flow and delivery duty

    Provide the flow needed at the required head or pressure. Keep suction lift separate from discharge head in the enquiry.

  5. Review inlet piping and installation

    Share pipe length, diameter, fittings, valves and potential air-entry points. Include site elevation and operating temperature when assessing suction conditions.

  6. Consider another installation approach

    Compare Centrifugal Pump options for a suitable flooded inlet. For chemical duties, review Chemical Pump materials and configurations before assuming a self-priming model is the appropriate choice.

Technical Considerations

Suction-side sketch

Prepare pump elevation, minimum and maximum source-liquid levels, inlet-pipe dimensions and fittings. Indicate whether the source vessel is open or pressurised.

Liquid and duty

Send liquid identity, temperature, viscosity and solids information, plus required flow and delivery head. Identify whether startup or continuous transfer is the main concern.

Startup and maintenance

Describe initial filling, stop/start frequency, power supply and access to the pump. Request the exact model’s priming and installation instructions.

Procurement Questions

Does self-priming mean the pump can start completely dry?

Not necessarily. Initial filling, retained liquid and venting requirements depend on the selected construction, so confirm its startup procedure and do not assume dry-running capability.

Can I use the published suction lift directly for my site?

Treat it as model information that needs checking against your installation. Liquid temperature, source pressure, pipe losses and the lowest liquid level affect the actual suction conditions.

Are ZX chemical and ZX sludge listings interchangeable?

They are separate commercial listings with different stated duties. Confirm the liquid, solids and materials for the exact product rather than selecting solely by the shared ZX designation.

What should I send to review a self-priming installation?

Send the liquid and duty requirements together with a suction-side sketch showing elevations, pipe sizes and fittings. Include startup frequency, initial filling arrangements and the lowest source-liquid level.

When should I consider a different pump arrangement?

If a suitable flooded inlet is available, compare conventional centrifugal options for the required duty. For corrosive-liquid service, also review chemical-pump construction and materials independently of the priming feature.
