Magnetic Pump

What is a Magnetic Pump?

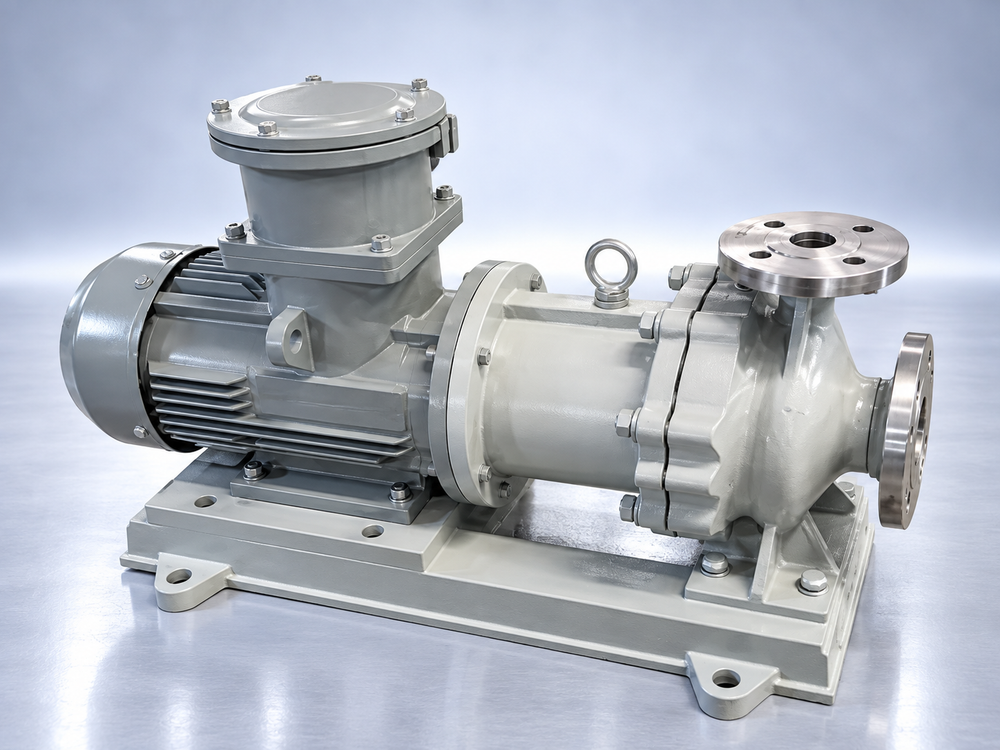

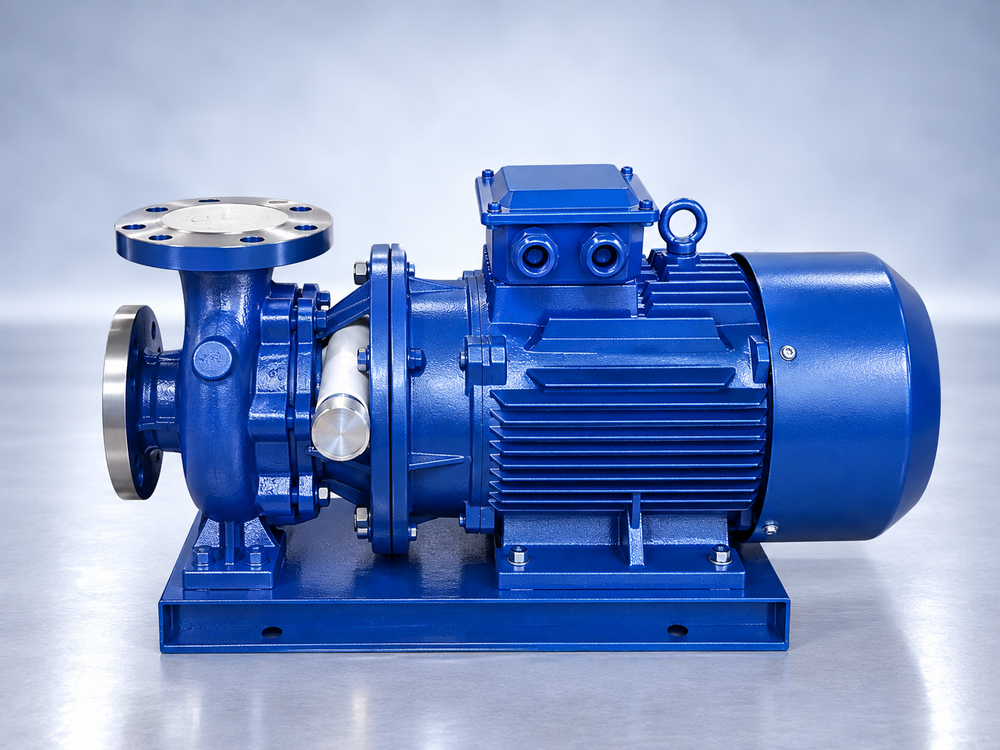

A magnetic-drive pump transmits drive torque through magnetic coupling rather than a direct mechanical coupling across the containment boundary. This describes a drive arrangement, not one universal hydraulic design. The HENVO Magnetic Pump collection includes CQ magnetic-drive and centrifugal listings, KCB and YCB magnetic-gear listings, and NYP, WCB, ZYB, ISW and IHF entries. Confirm the quoted model’s actual construction, wetted materials and operating limits; the collection name alone does not verify a seal-less design or a particular containment arrangement for every product.

Explore Magnetic Pumps → Request Engineering Support
✓ 18 Pump Configurations ✓ Material Compatibility ✓ OEM Configuration

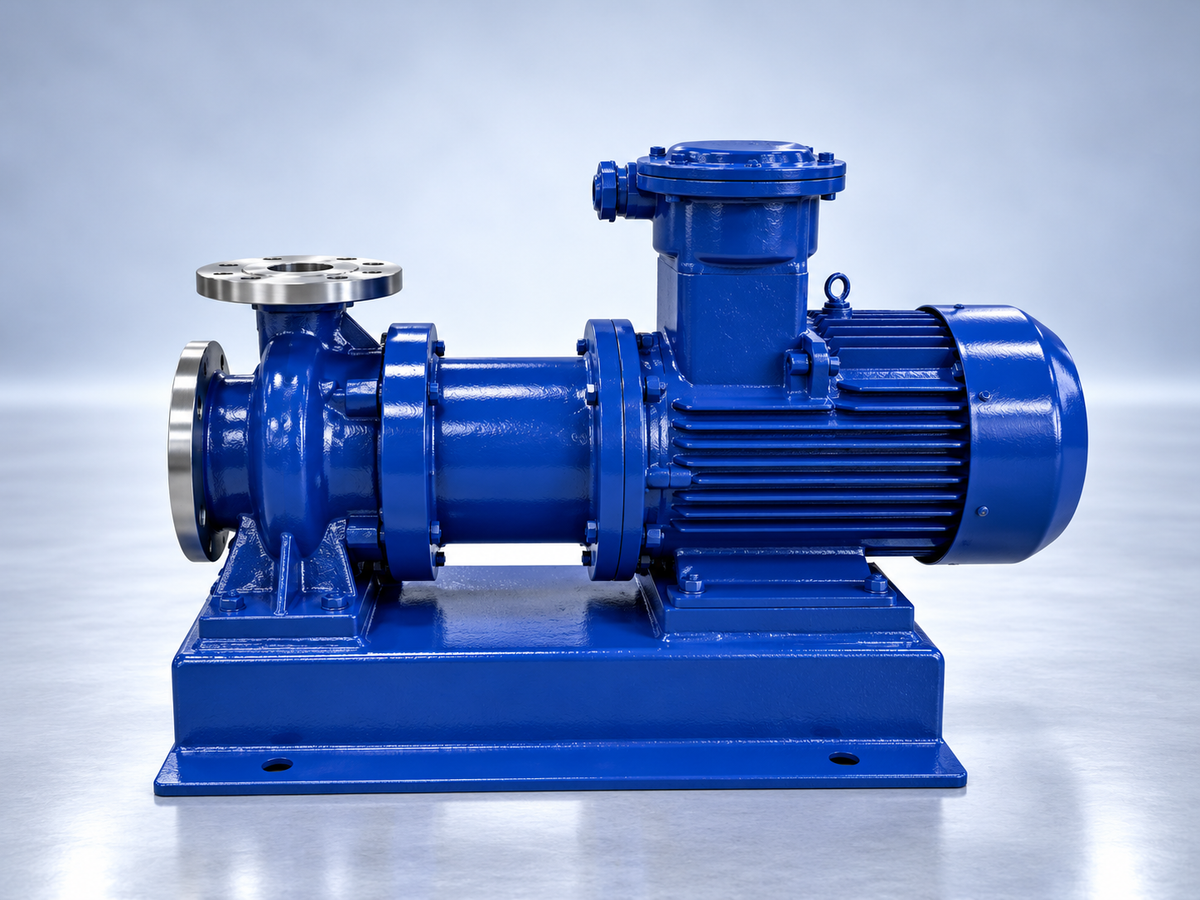

Magnetic Pumps for Industrial Fluid Transfer

Applications

Chemical and acid-liquid enquiries

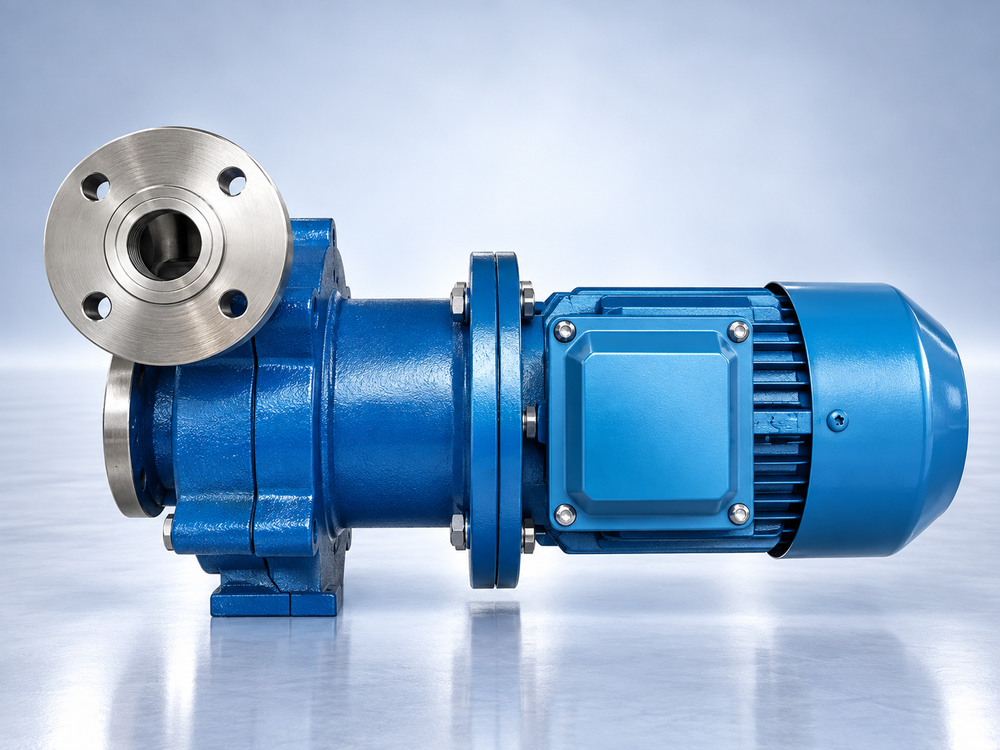

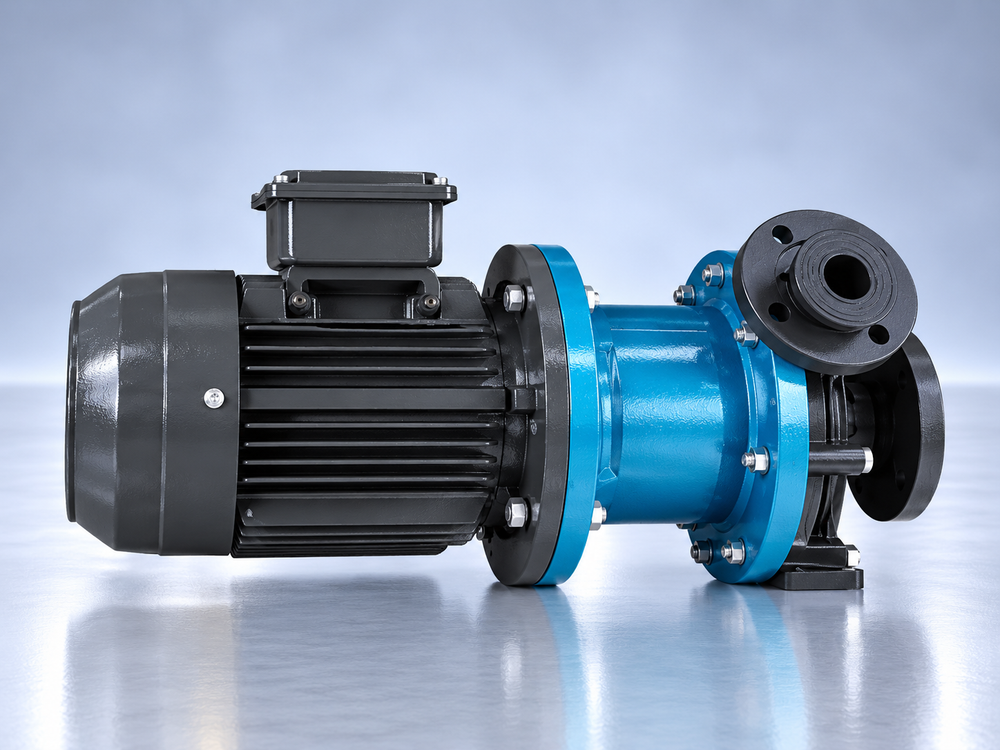

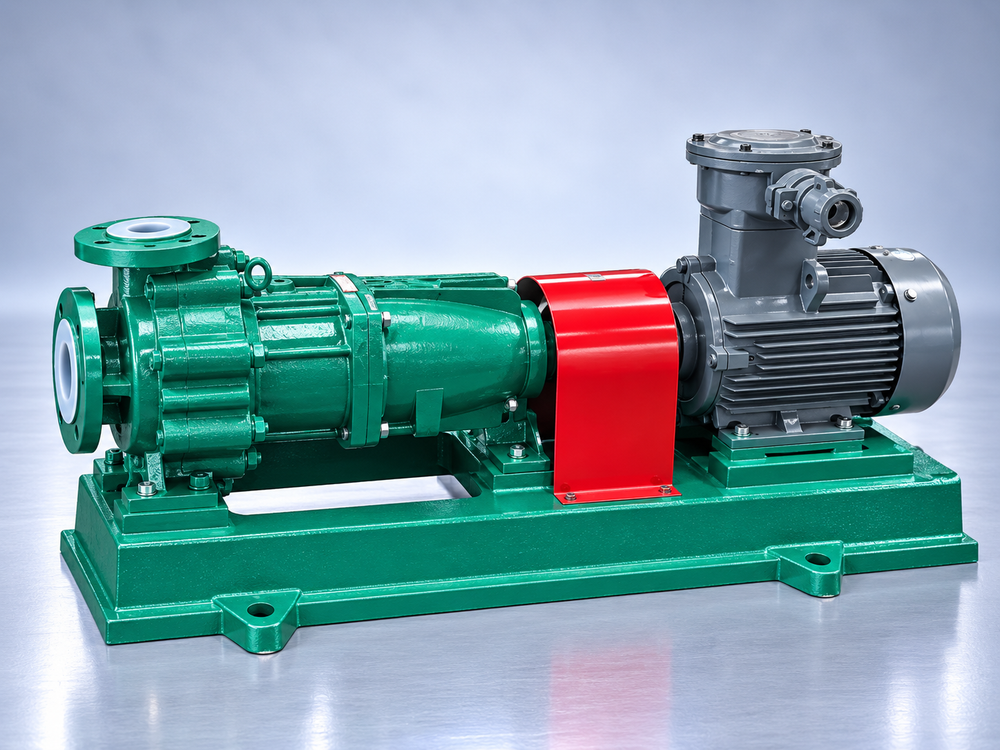

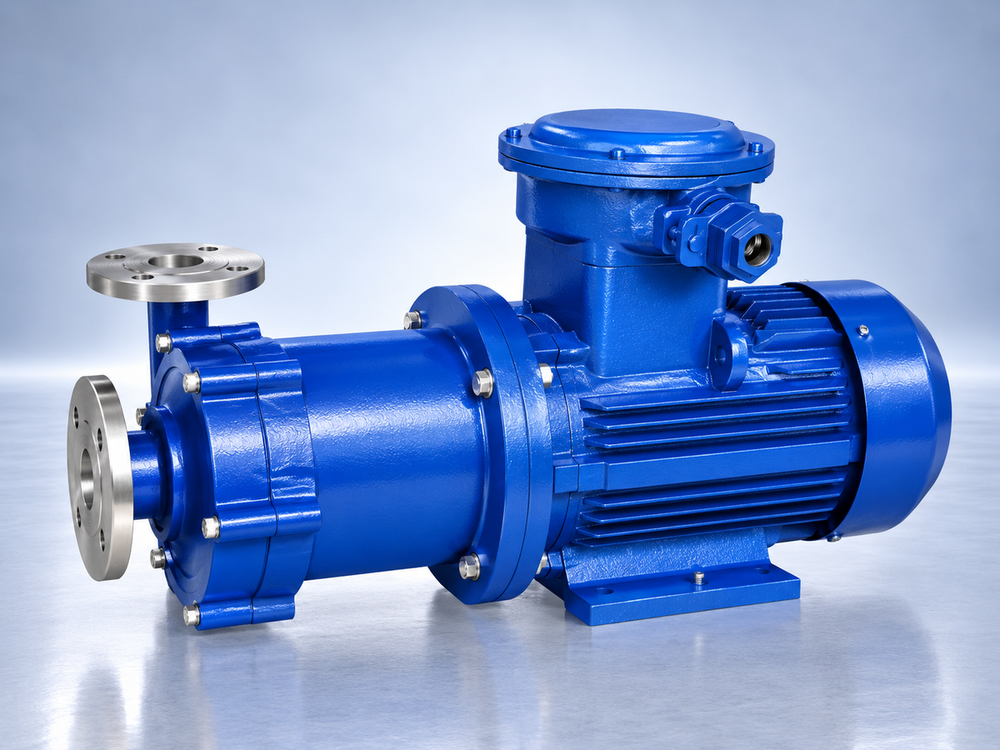

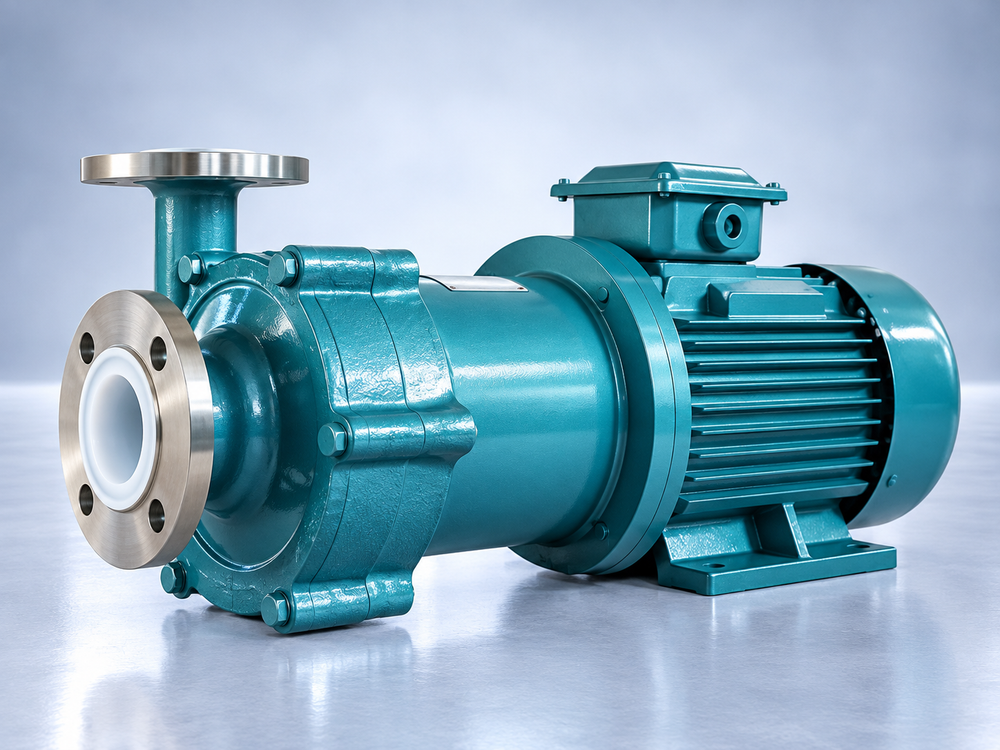

CQ acid-liquid and chemical listings and IHF chemical listings identify this application path. Confirm liquid composition, concentration, temperature and the actual wetted construction.

Gear-type liquid transfer

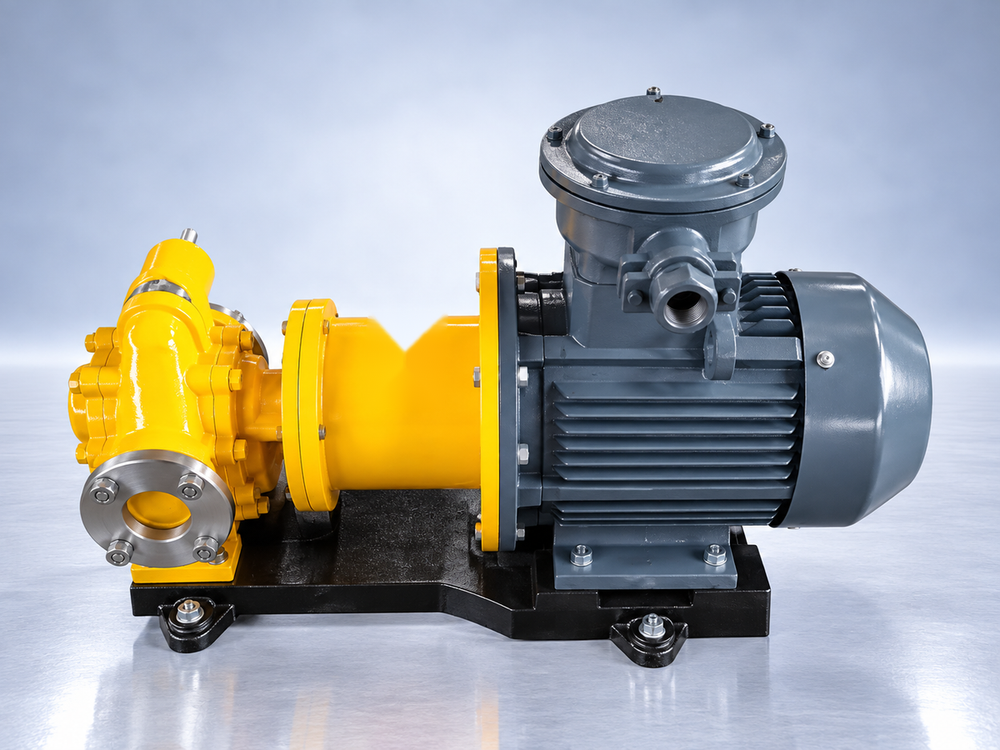

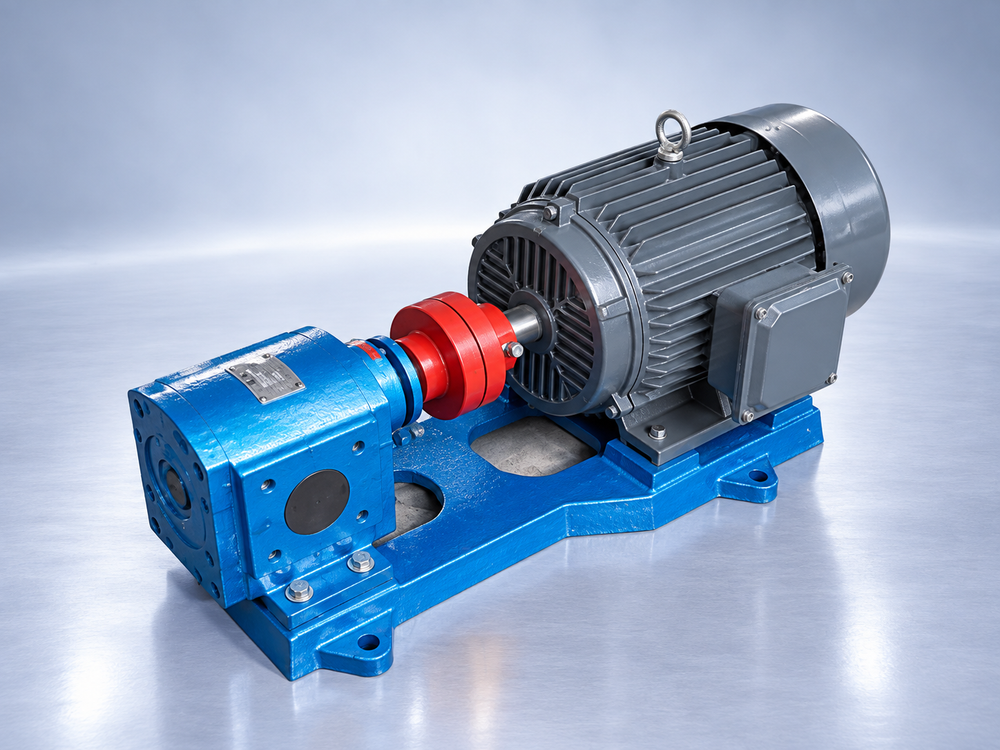

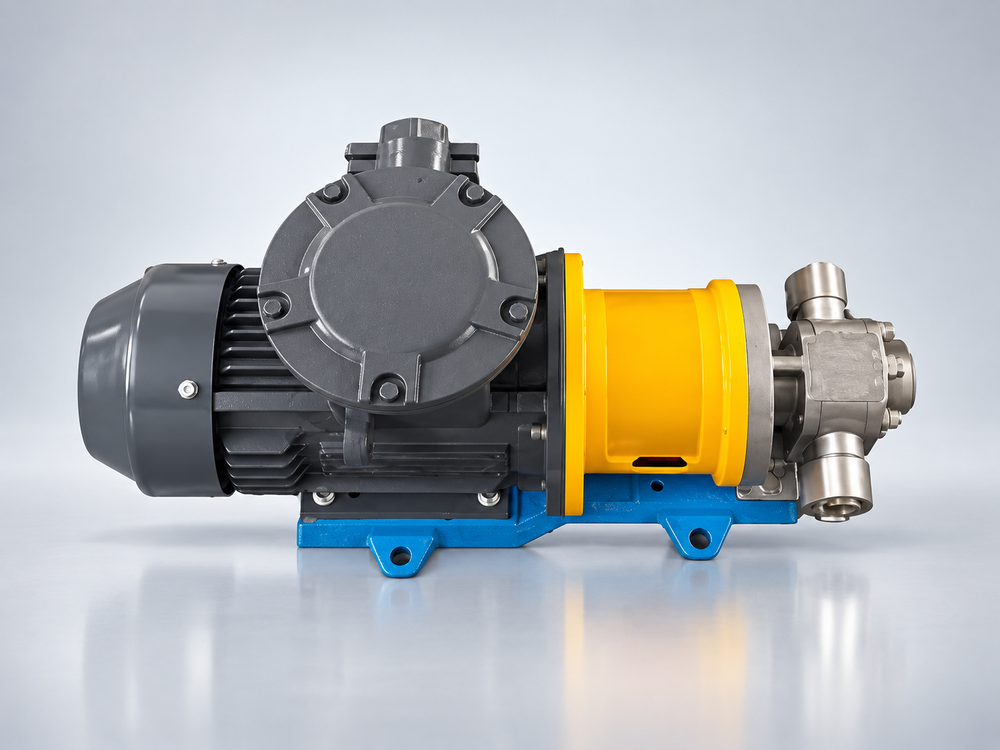

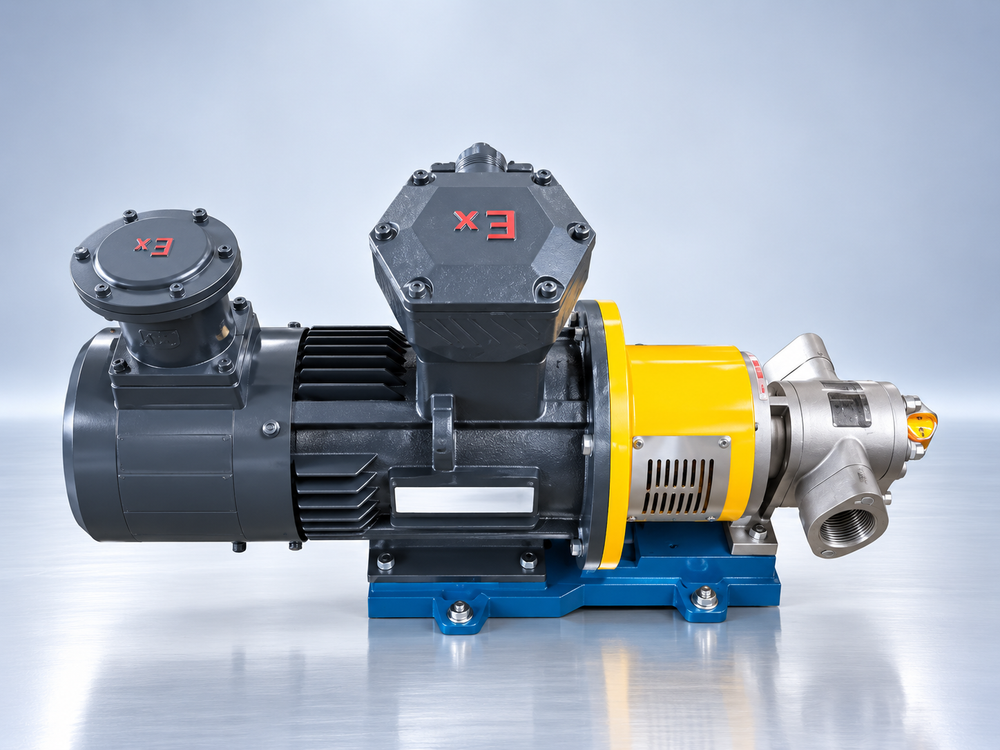

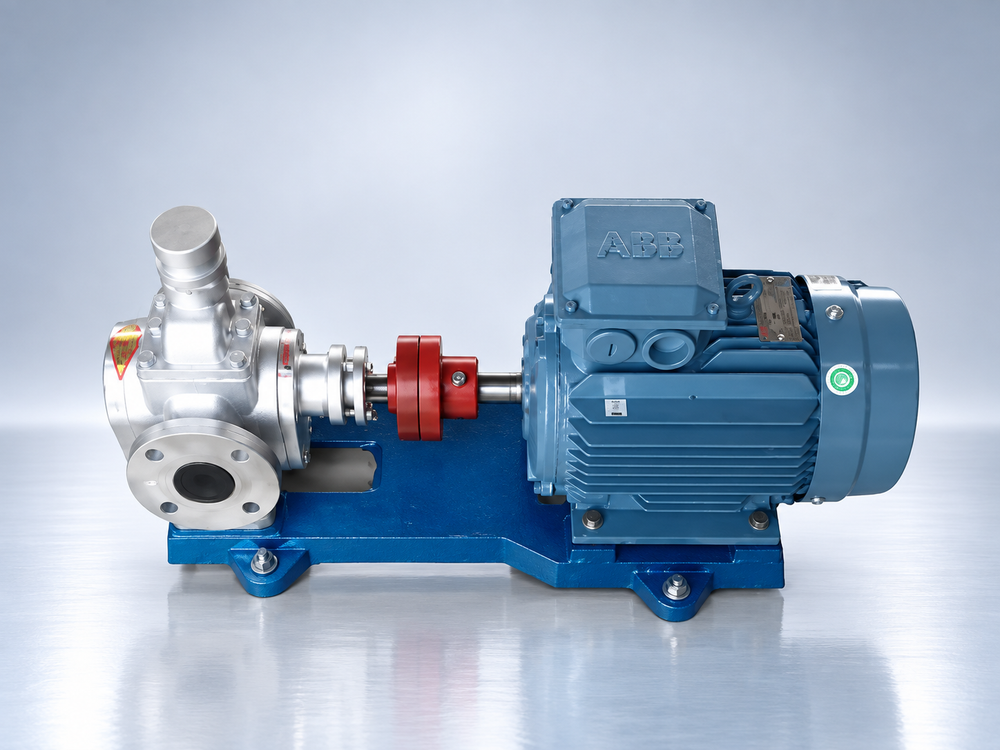

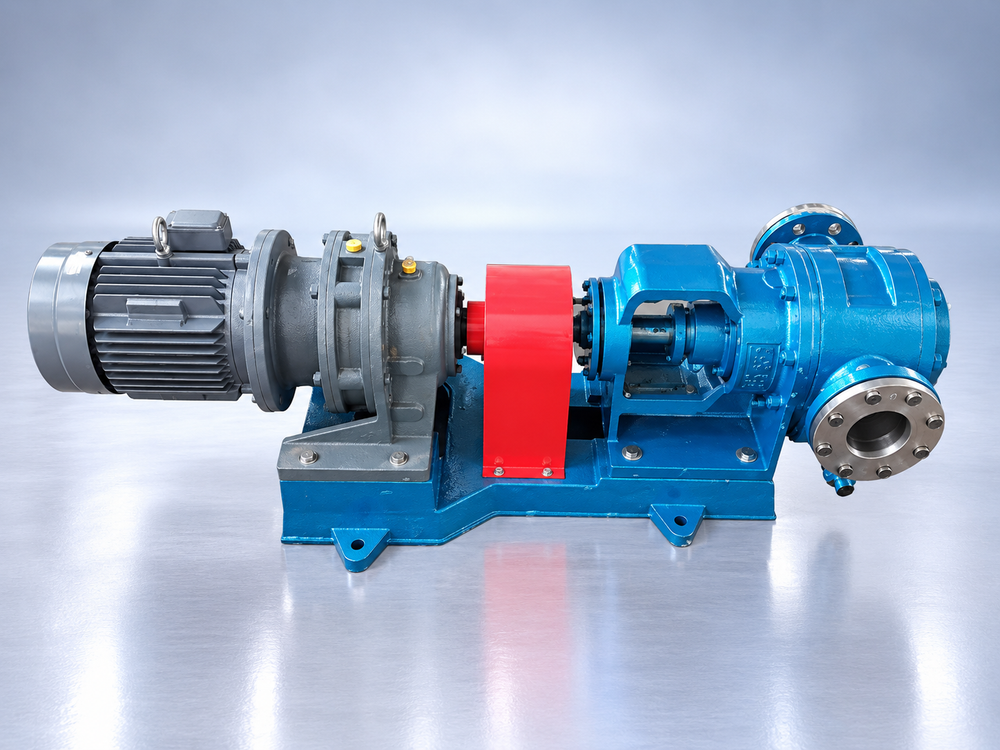

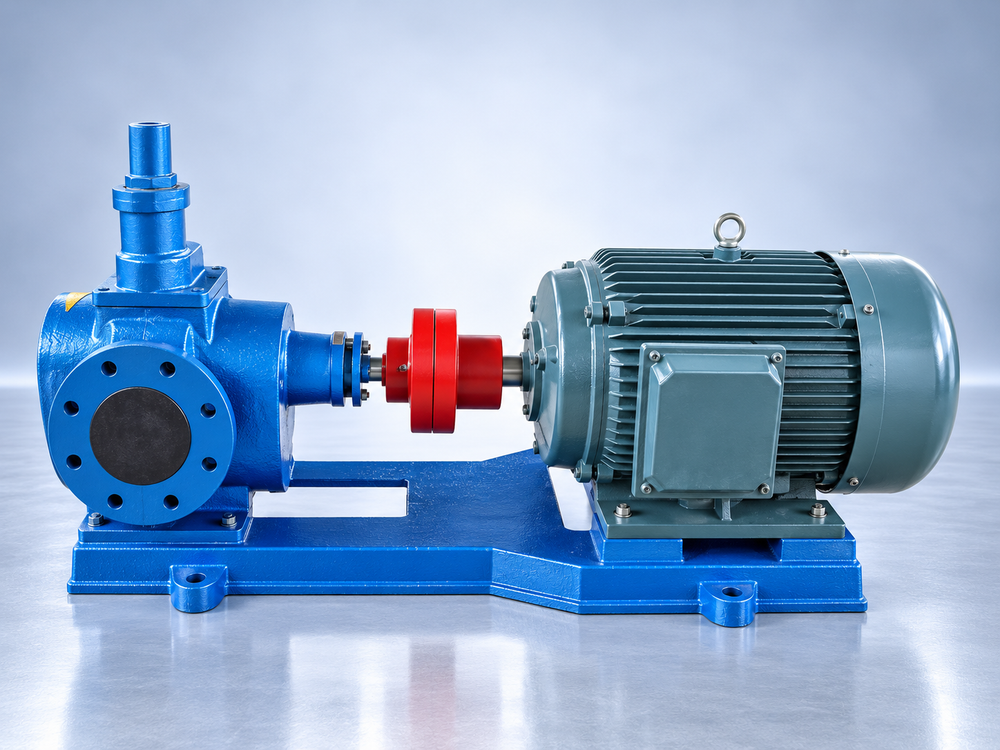

KCB, YCB, ZYB and NYP product names identify magnetic-gear configurations for comparison. Check viscosity and the intended medium against the individual model’s data.

Thermal-oil and heated-liquid review

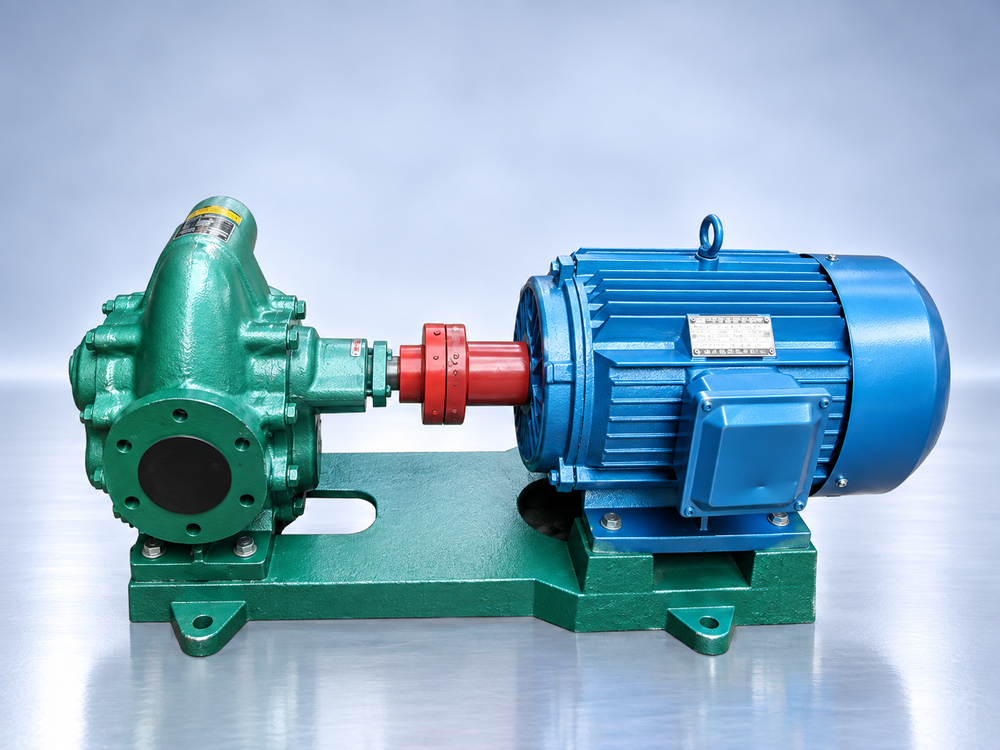

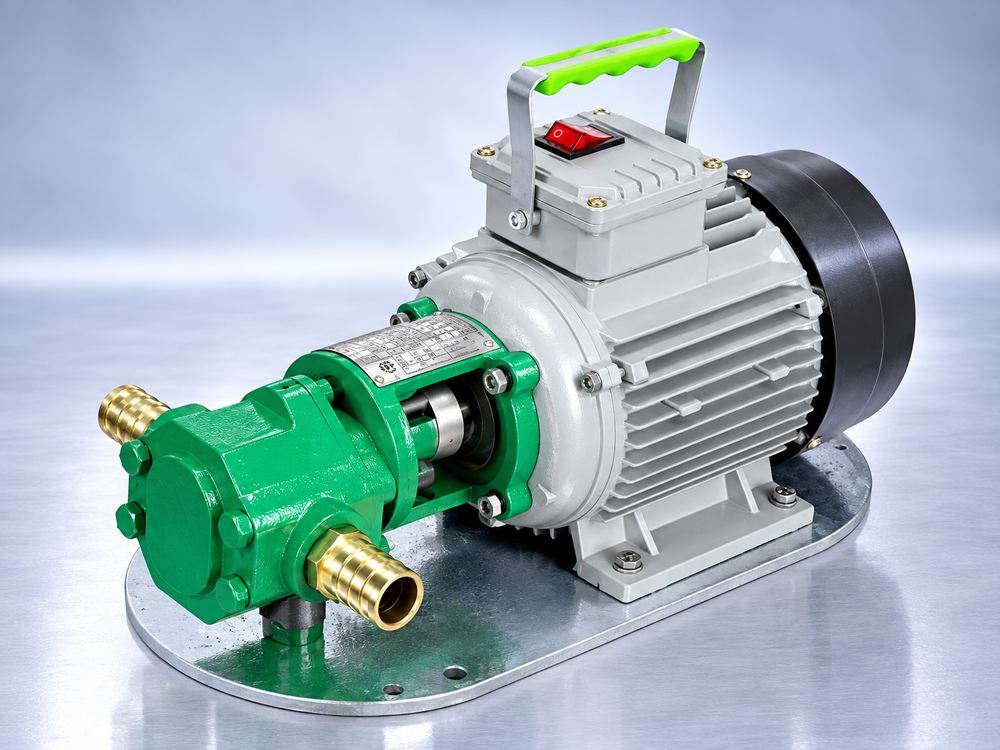

WCB Thermal Oil Magnetic Pump and KCB Heat Insulating Magnetic Pump are named listings. Request confirmation of the temperature capability and heating or insulation arrangement for the exact fluid.

How to Select the Right Pump?

Selection depends on the following operating conditions. Keep the units and pressure reference explicit when sending your requirement.

  1. Confirm the drive and hydraulic design

    Identify whether the proposal is centrifugal or gear type and obtain confirmation of its coupling and containment construction. Do not infer the entire design from the category label.

  2. Specify the chemical precisely

    Provide liquid name, concentration, contaminants and temperature. Review every wetted material against those conditions.

  3. Match flow with head or pressure

    Use the units and labels shown for the individual product. Define one required operating point rather than combining maximum values from separate listings.

  4. Assess viscosity and temperature

    For gear-labelled or viscous-liquid enquiries, provide viscosity at operating temperature. Include startup and shutdown conditions where the fluid changes.

  5. Review inlet and operating conditions

    Send source pressure, liquid level, suction piping and operating schedule. Ask for the selected construction’s startup and minimum operating requirements.

  6. Compare the appropriate hydraulic family

    Chemical Pump is a relevant comparison for chemical duty, Gear Pump for gear-type liquid transfer and Centrifugal Pump for impeller-based duty. Select the mechanism and materials alongside any containment requirement.

Technical Considerations

Fluid compatibility brief

Prepare liquid identity, concentration, temperature, density and viscosity. State the required wetted materials and any containment requirement.

Hydraulic and inlet data

Provide flow, inlet and discharge pressures or head, pipework and operating hours. Include expected starts, stops and changing liquid conditions.

Construction confirmation

Reference the exact CQ, KCB, NYP or other listing. Request a configuration drawing or written confirmation of the drive, containment, seals and materials before final selection.

18 PUMP CONFIGURATIONS

Magnetic Pump Product Series

Procurement Questions

Does every product in this collection have the same magnetic-drive construction?

The listings cover different named families and hydraulic types. Confirm the quoted product’s construction; the collection label alone does not establish a seal-less arrangement or a common containment design.

How should I select a magnetic pump for a chemical liquid?

Identify the chemical, concentration, temperature and required flow and head first. Then confirm wetted-material compatibility and the actual drive and containment arrangement for the selected listing.

Are magnetic centrifugal and magnetic gear pumps interchangeable?

They describe different pumping mechanisms even where both names refer to magnetic drive. Review viscosity, duty point and pressure requirements for the relevant hydraulic family.

What should I confirm for thermal-oil or heat-insulating listings?

Provide the exact fluid and the startup, normal and maximum temperatures. Ask for confirmation of materials, drive limits and any heating or insulation arrangement for the quoted model.

When should I compare Chemical Pump, Gear Pump or Centrifugal Pump options?

Use those categories to compare the underlying liquid-handling duty and construction. If containment is a project requirement, state it explicitly and confirm it for every shortlisted option.

Have a Magnetic Pump Project?

Send your liquid properties, required flow and pressure, temperature, installation details and drive requirements.
