ZX SERIES
ZX Self Priming Chemical Pump
- Flow Rate
- 3.2-550 m³/h
- Head Lift
- 20-80 m
- Suction Lift
- 5-6.5 m
CHEMICAL PUMP SOLUTIONS
Chemical Pump
What is a Chemical Pump?
A chemical pump moves process liquids whose composition, concentration or temperature requires careful selection of wetted materials and seals. It helps transfer or circulate liquids between tanks, treatment stages and production equipment. Typical applications include chemical processing, water-treatment chemical transfer and industrial liquid handling. Plant engineers, maintenance teams and equipment builders select a chemical pump by matching the required flow and head with the liquid properties, installation conditions and model-specific operating limits.
✓ Corrosion-Resistant Options
✓ Application-Based Selection
✓ OEM Configuration
Applications
Chemical processing
Moving process liquids between storage, mixing and circulation equipment; the liquid composition and concentration guide the compatibility review.
Water treatment
Transferring treatment chemicals between tanks and process stages where materials and seals must suit the liquid being handled.
Industrial liquid transfer
Supplying or recirculating process liquids for production equipment with a defined flow, temperature and installation arrangement.
How to Select the Right Pump?
Selection depends on the following operating conditions. Keep the units and pressure reference explicit when sending your requirement.
Flow rate
State the normal and required operating flow, with units and any expected variation during production.
Head / pressure
Provide the required head or pressure at that flow, including elevation and pipe-system requirements. Identify the pressure reference and units.
Medium characteristics
Identify the liquid, chemical concentration, viscosity and any solids, gas or contamination that may affect the pump.
Temperature
Give the normal liquid temperature and start-up, cleaning or upset conditions that the configuration must accommodate.
Material compatibility
Confirm the casing, impeller, seals and other wetted parts against the actual chemical and its concentration at operating temperature.
Seal requirements
Describe leakage restrictions, seal support arrangements and maintenance access. Request model-specific confirmation of the proposed sealing system.
Technical Considerations
Compatibility is specific to the duty
A material name alone does not establish suitability. Review the complete liquid composition, concentration and temperature, including cleaning fluids and any changing conditions.
Check the proposed configuration
Request the performance curve, wetted-material specification and seal details for the exact configuration. A series-level range is not a guarantee that all stated maximum values occur together.
Review suction and installation
Provide inlet conditions, tank level, pipe layout and the available suction head. Ask the supplier to review suction requirements, connections and installation space.
Chemical Pump Product Series
FSB SERIES
FSB Series Fluoroplastic Acid Pump
- Flow Rate
- 3-100 m³/h
- Head Lift
- 18-55 m
- Motor Power
- 1.5-18.5 kW
IH SERIES
IH Centrifugal Pump for Corrosive Liquid
- Flow Rate
- 0.1-150 m³/h
- Head Lift
- 0.6-2.4 MPa
- Temperature Range
- ≤80°C
IH SERIES
IH Series Horizontal Chemical Pump
- Flow Rate
- 3-150 m³/h
- Head Lift
- 0.6-2.4 MPa
- Temperature Range
- ≤80°C

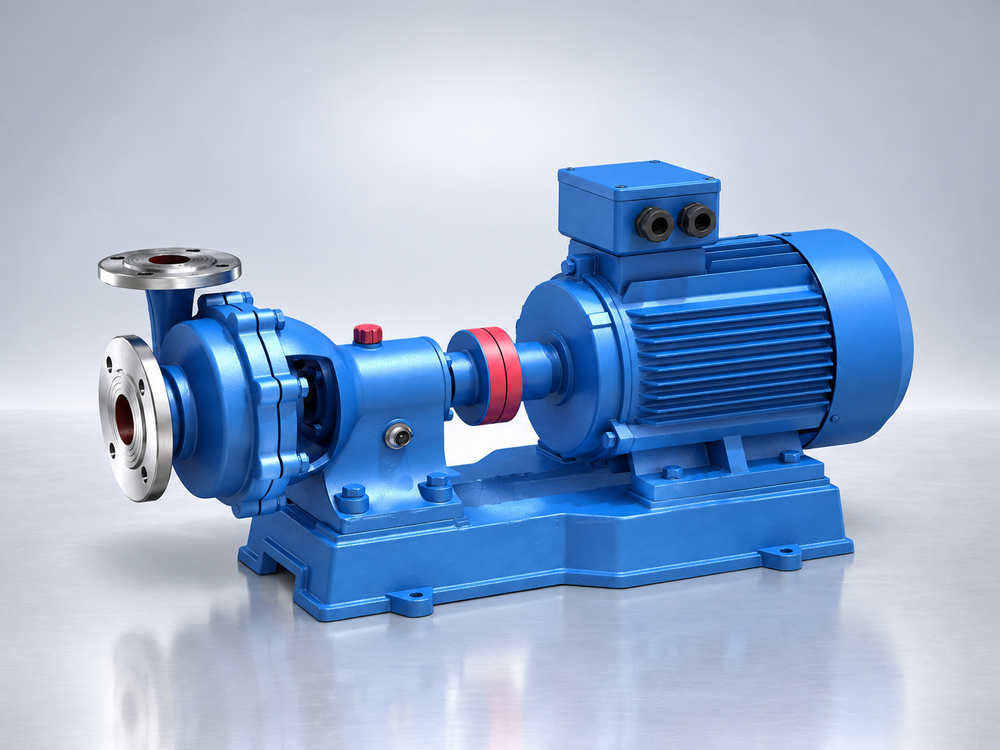

FBAFB Chemical Centrifugal Pump
- Flow Rate
- 2–191 m³/h
- Head Lift
- 5.2–70 m
- Working Pressure
- ≤ 2.0 MPa
FSB Series Chemical Pumps
- Flow Rate
- 3–100 m³/h
- Head Lift
- 15–55 m
- Motor Power
- 1.5–18.5 kW
IH Series Electric Chemical Pump
- Flow Rate
- 6.3–400 m³/h
- Head Lift
- 5–125 m
- Temperature Range
- ≤ 80°C

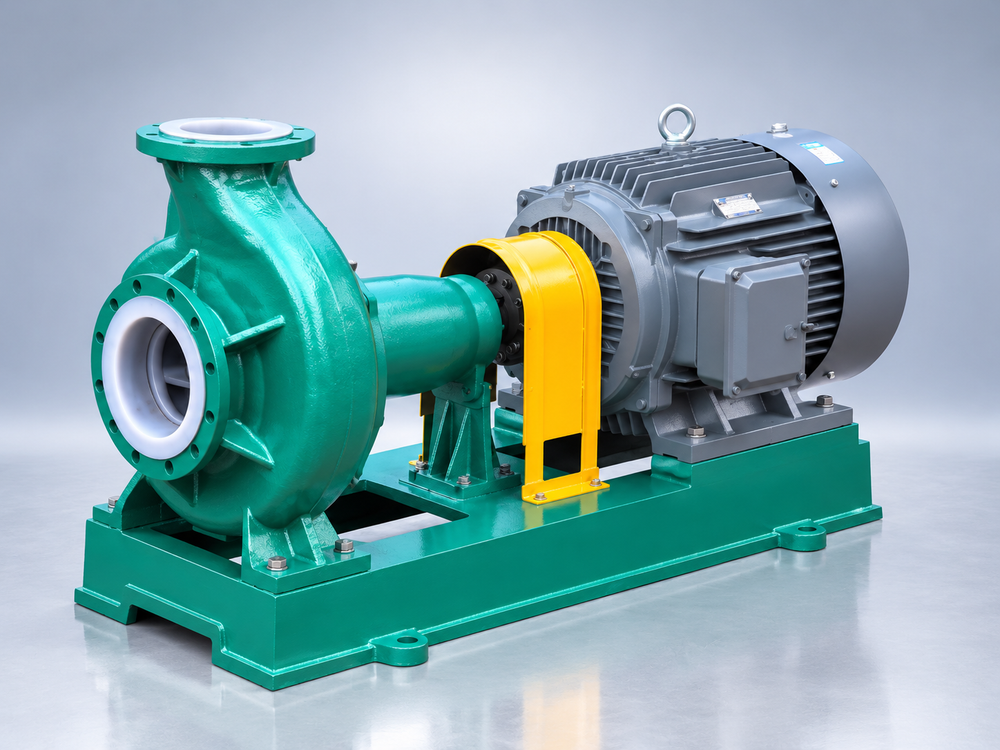

IHF Chemical Fluorine Centrifugal Pump
- Flow Rate
- 3.5–300 m³/h
- Head Lift
- 4.5–87 m
- Temperature Range
- −20°C to 100°C

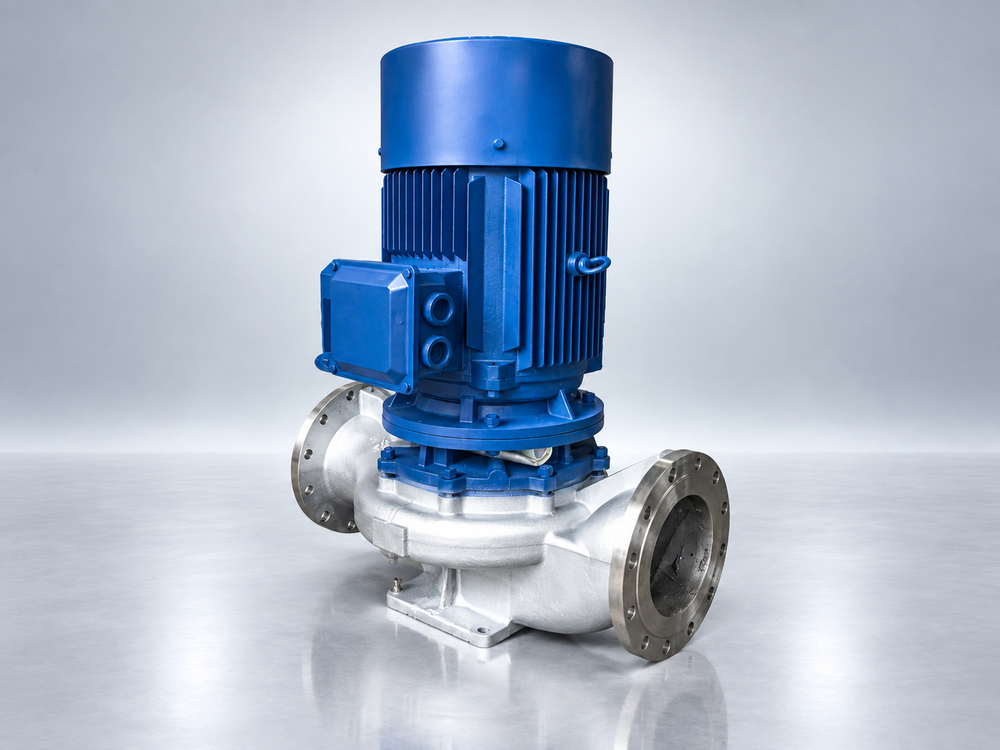

IHG Series Vertical Chemical Pump
- Flow Rate
- 1–1500 m³/h
- Head Lift
- 7–150 m
- Motor Power
- 0.18–2500 kW

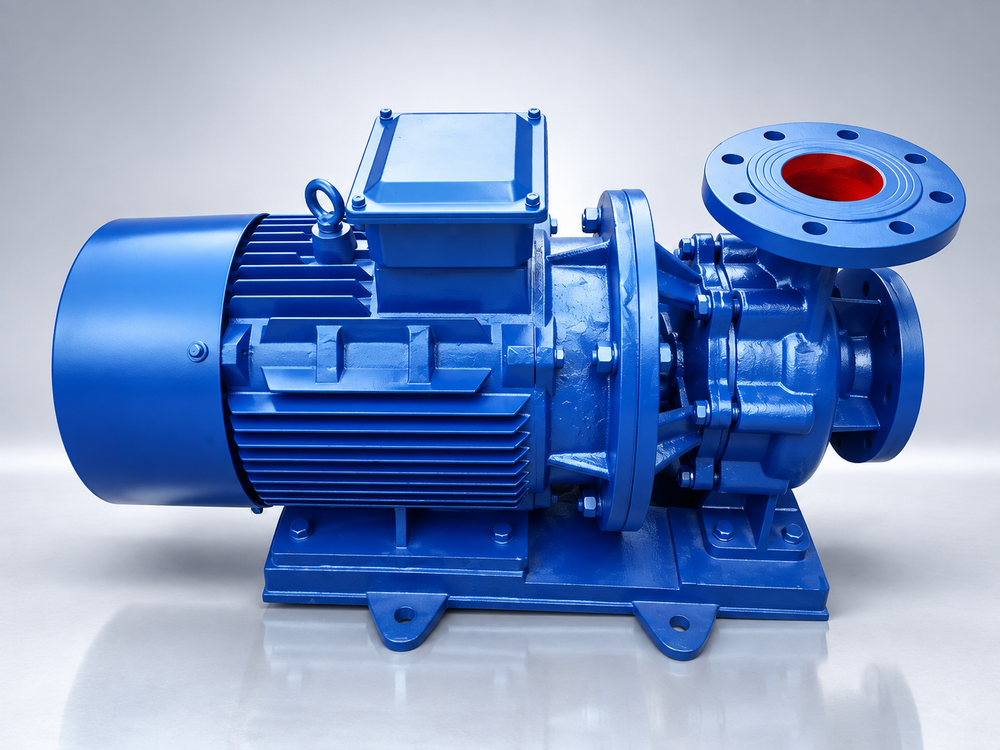

ISW Chemical Centrifugal Water Pump
- Flow Rate
- 1.5–1600 m³/h
- Head Lift
- 2–125 m
- Motor Power
- 0.18–250 kW

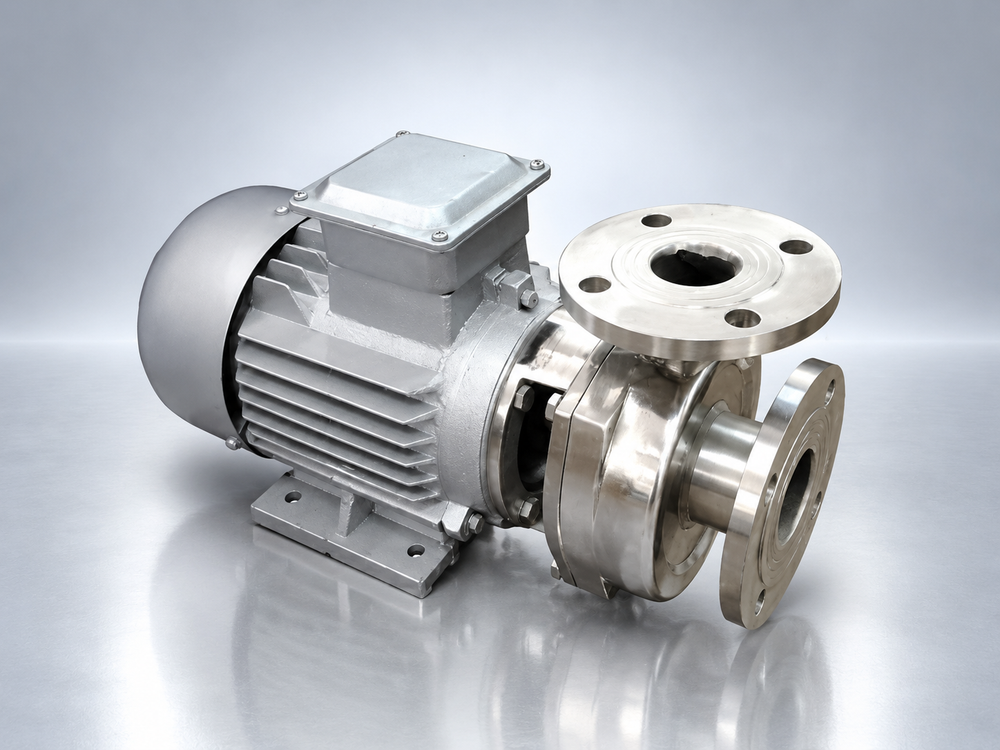

SFB Series Centrifugal Pump for Chemical
- Flow Rate
- 0.8–31 m³/h
- Head Lift
- 3–30 m
- Motor Power
- 0.25–3 kW

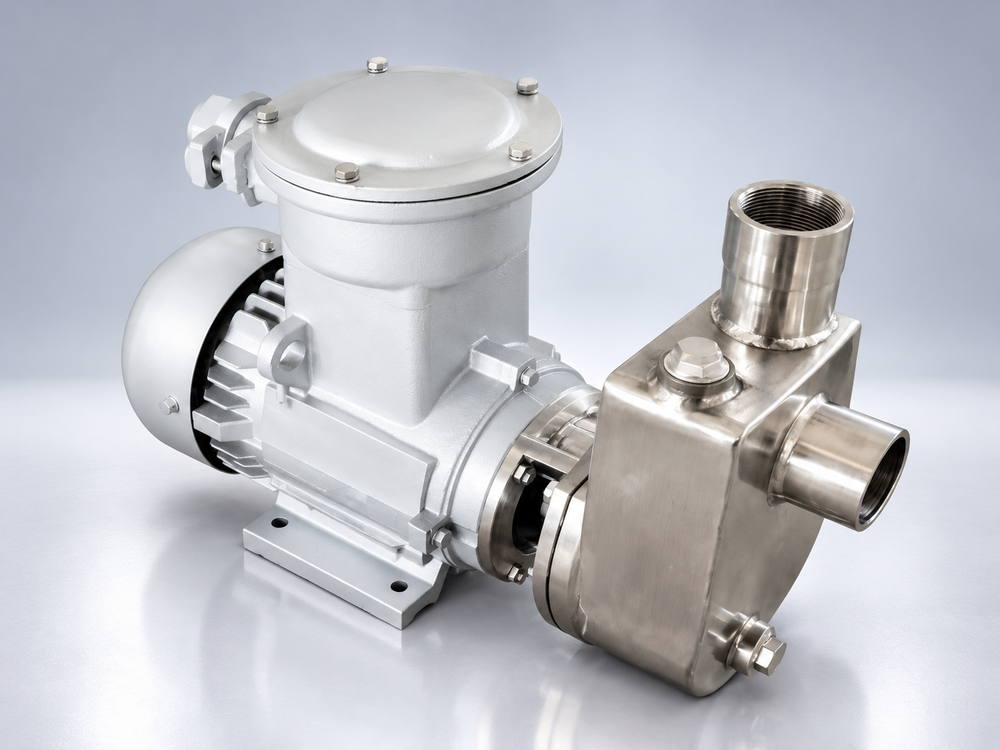

SFBX Chemical Centrifugal Pump
- Flow Rate
- 0.8–23.8 m³/h
- Head Lift
- 3–28 m
- Motor Power
- 0.25–3 kW

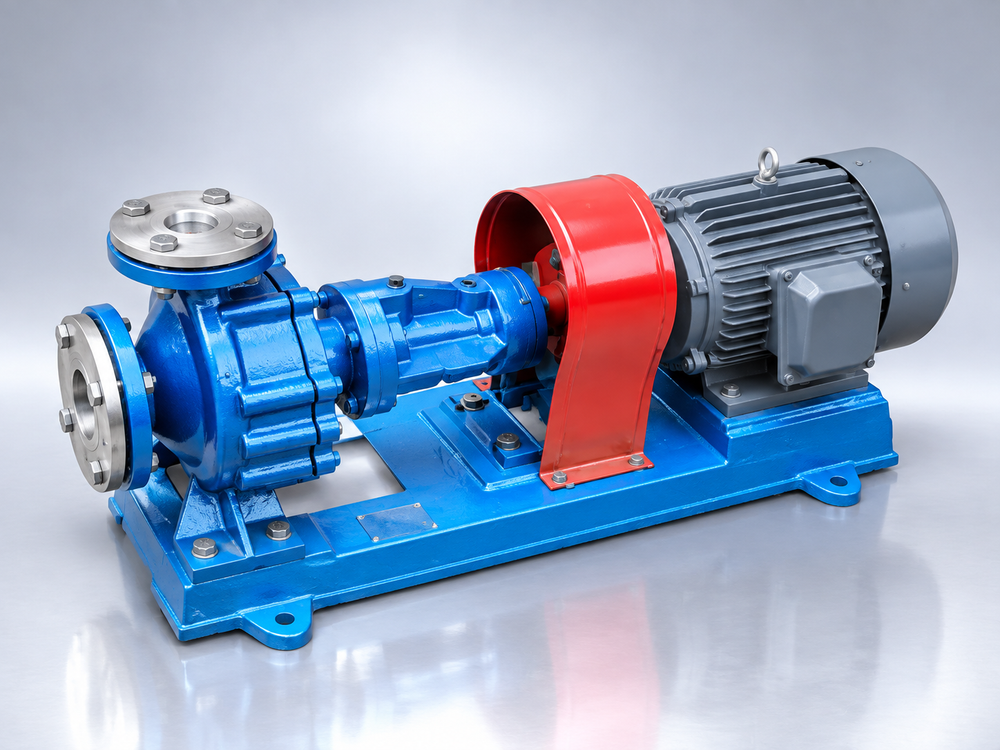

TSB Grease Decolorization Pump
- Flow Rate
- 3.4–460 m³/h
- Head Lift
- 3.6–132 m
- Temperature Range
- −45°C to +360°C

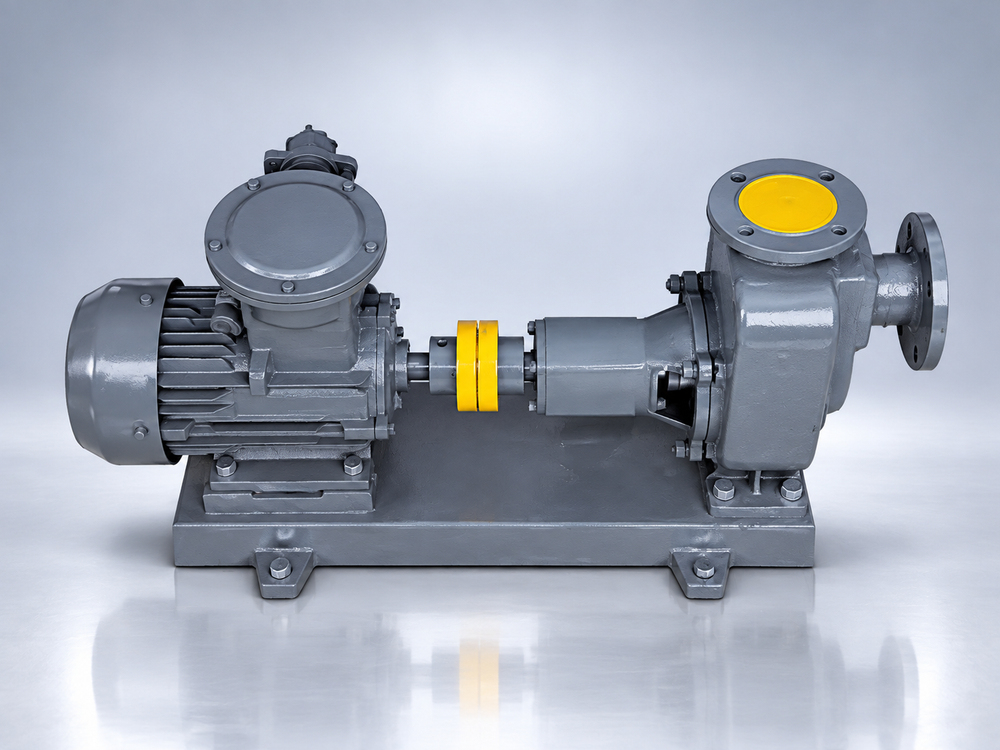

ZW Centrifugal Chemical Pump
- Flow Rate
- 5–800 m³/h
- Head Lift
- 14–80 m
- Motor Power
- 2.2–55 kW
Procurement Questions
How do I choose a chemical pump?
Start with the liquid identity and concentration, then define the required flow, head or pressure, temperature and suction conditions. Review wetted materials and seals against that duty, and request model-specific performance information before selecting a configuration.
Can one material handle every chemical?
No. Compatibility depends on the chemical, concentration, temperature and exposure conditions. Identify every wetted component, including seals and gaskets, and request confirmation for the actual process and cleaning fluids.
Is a chemical pump always a centrifugal pump?
No. Chemical duty describes the application and compatibility requirements; centrifugal describes an operating principle. Compare the required transfer duty and the documented construction of each model rather than treating the category names as interchangeable.
Does the highest listed flow occur at the highest listed head?
Do not assume so. Series-level ranges can cover different models or operating conditions. Request the curve and configuration details that show your required flow and head together.
What should I send for a chemical pump inquiry?
Send the product name or URL, liquid and concentration, required flow and head or pressure, temperature, suction conditions, preferred materials, power supply and quantity. Include drawings or project requirements when available.
Have a Chemical Pump Project?
Send us your liquid type, flow rate, head, temperature and material requirements. Our team will help evaluate a suitable pump configuration.
