How to Select a Pump for High-Viscosity Liquids
Select a pump for a viscous liquid using viscosity at the actual temperature together with flow, differential pressure, medium characteristics, solids where relevant and installation conditions. Startup behavior may differ from normal operation, and the inlet arrangement can limit how liquid reaches the pump. Gear, screw and rotary lobe configurations may be evaluated after these conditions are defined. No single family is the best choice for every viscous liquid.
Why viscosity matters
Viscosity affects resistance to flow and how the pump fills, leaks internally and requires drive power. Evaluate the specific configuration at the required duty rather than assuming a fixed performance change.
- Use a measured value with context: Provide the viscosity units and temperature, plus the test method or shear conditions if known. Avoid describing the liquid only as thick.
- Include cold starts and shutdowns: Explain whether the liquid thickens, sets or separates during downtime and how startup is managed.
- Describe behavior under movement: Report sensitivity to shear or changes with time when known. Do not infer product handling from a family name.
Other factors to confirm
Viscosity must be reviewed together with the duty and liquid properties. The pumping configuration and its inlet supply need to work as a system.
- Flow and differential pressure: Specify flow, pressure, units, operating range and control method together.
- Temperature: Provide the range during startup and operation, including any available heating or temperature control.
- Medium and solids: Identify lubricity, particles, abrasiveness, gas and any need to preserve the product during transfer.
- Materials and seals: Specify compatibility requirements, cleaning media and leakage restrictions.
- Inlet and installation: Describe tank level, inlet pressure, pipe length and diameter, feed method and available maintenance access.
- Drive and operation: Provide power supply and duty cycle; request a configuration review of speed, starting torque and pressure protection.
Pump types to evaluate
Gear, screw and rotary lobe products are useful families to investigate. Their construction and operating limits must be checked against the actual liquid.

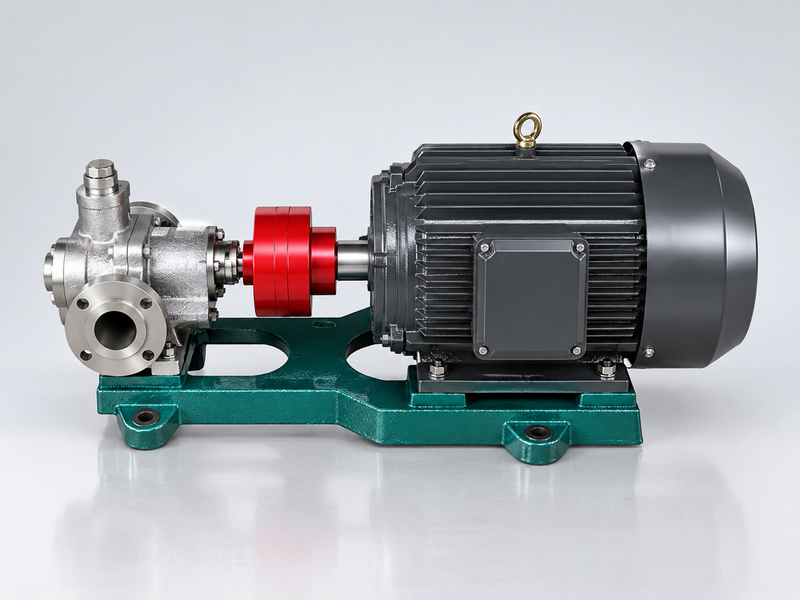

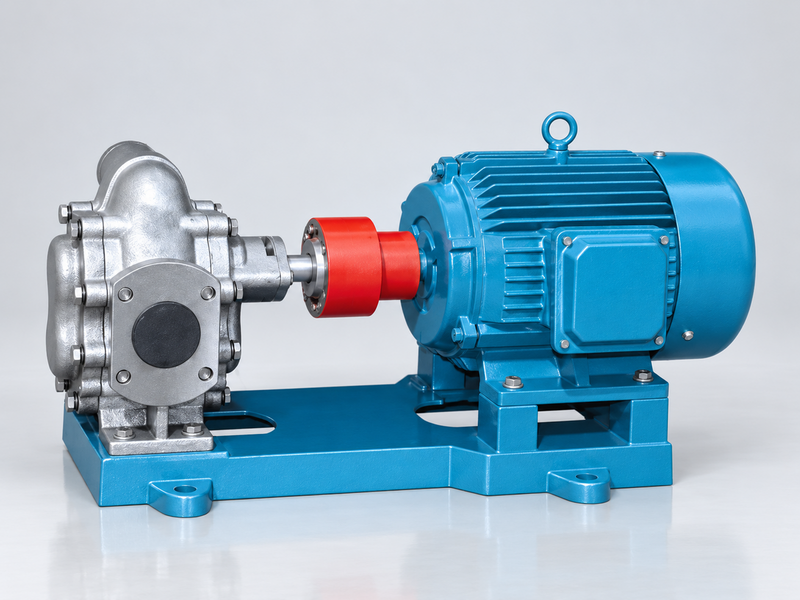

- Gear Pump
- May be evaluated for compatible viscous-liquid duties after checking lubricity, contamination, inlet filling and differential pressure.

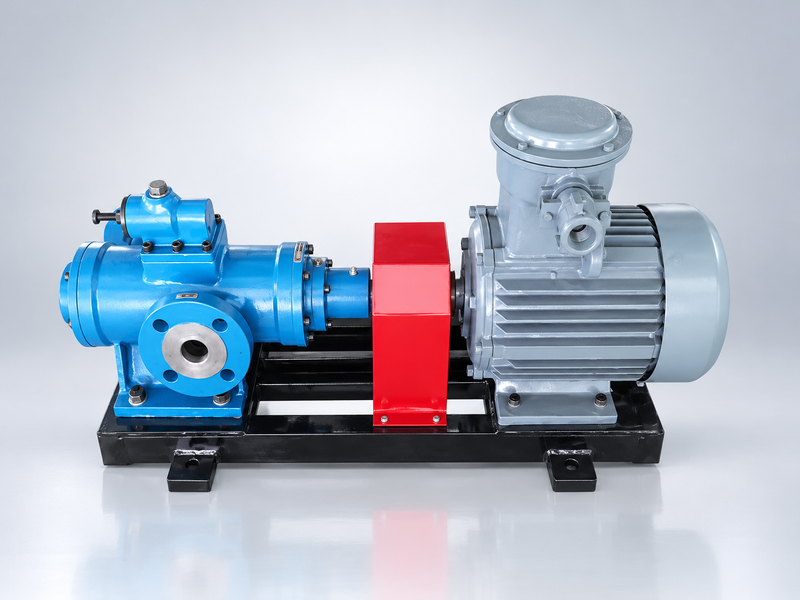

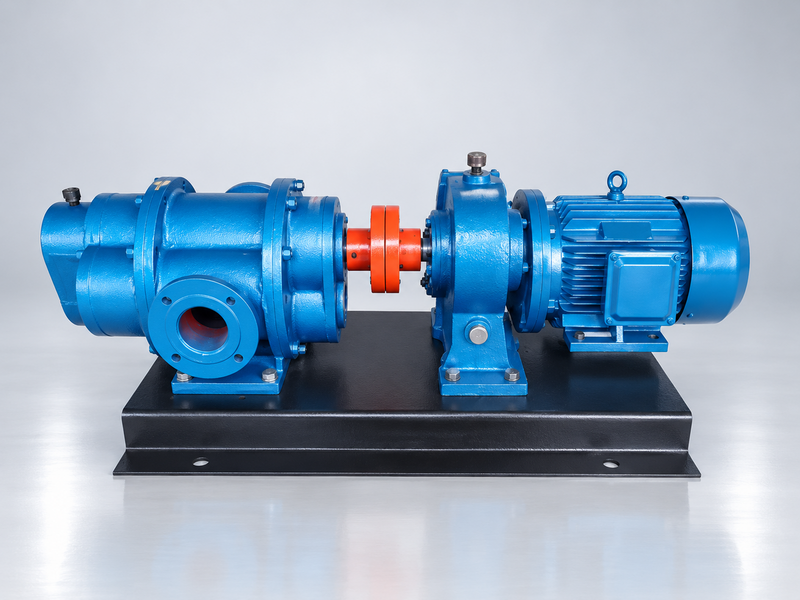

- Screw Pump
- May be evaluated after identifying the screw construction. Progressing-cavity and multi-screw designs have different fluid and installation requirements.

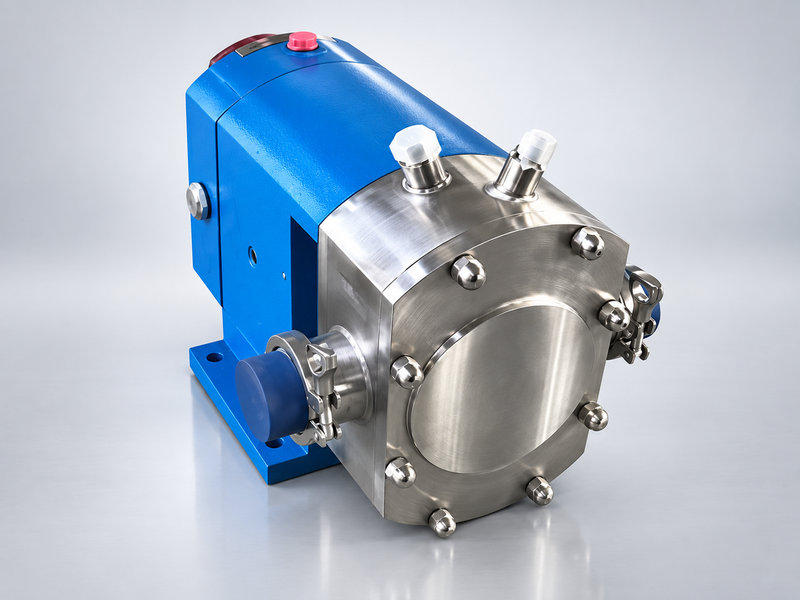

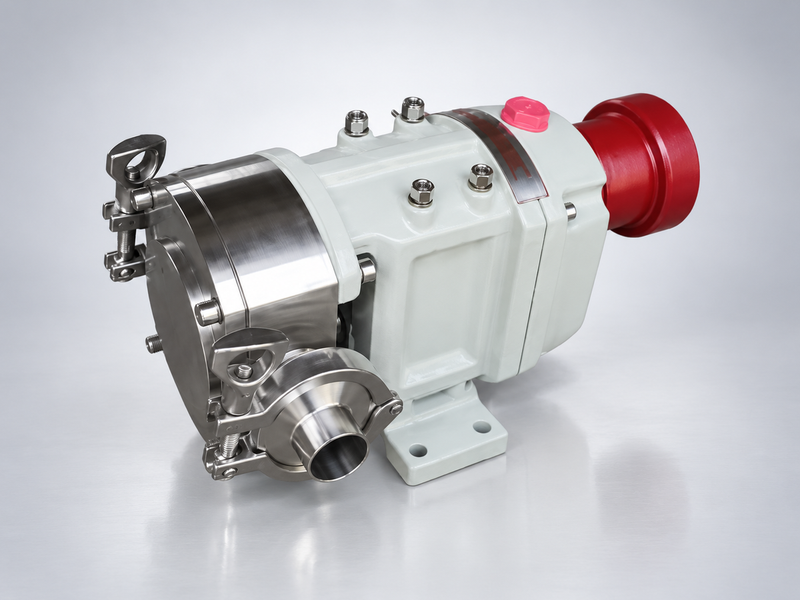

- Rotary Lobe Pump
- May be considered where viscosity and product handling are important, subject to rotor, clearance, speed, material and inlet-condition review.
Compare configurations before selecting
Start with Gear vs Screw for construction differences. If a centrifugal option is already under consideration, the lobe comparison explains why liquid-specific performance and handling need review.
Engineering background
These sources explain general selection principles. HENVO product facts come from the linked HENVO product pages; application guidance does not certify a product for a particular process.
Representative HENVO products
These existing product pages provide configurations to investigate. Confirm the complete duty and compatibility before treating any product as a selection.
Buyer questions
Use these answers to prepare the information needed for a configuration review.
Why does viscosity matter in pump selection?
It influences flow resistance, inlet filling, internal leakage and drive requirements. Review the actual viscosity at temperature for the proposed pump and duty.
What should I provide for a viscous-liquid application?
Send medium details, viscosity with units and temperature, flow, differential pressure, solids, materials and inlet arrangement. Include startup behavior.
Should flow be considered together with viscosity?
Yes. The required flow must be assessed at the actual viscosity and pressure, with enough liquid supply to the inlet. A flow rating alone is insufficient.
Is a gear pump always the best option for a thick liquid?
No. Suitability depends on lubricity, contamination, pressure, materials and installation as well as viscosity. Compare the complete configurations.
Are all screw pumps interchangeable?
No. Identify the screw construction, materials and intended liquid. A progressing-cavity arrangement and a multi-screw arrangement can have different requirements.
What if the liquid is much thicker during startup?
Provide both startup and operating conditions. Request review of inlet feeding, starting torque, speed and any heating requirements before selecting a model.
Prepare your application inquiry
Send the application and operating information below. Identify unknown values so they can be clarified during selection.
- Medium identity, lubricity and any solids
- Viscosity, units and measurement temperature
- Startup, operating and shutdown conditions
- Required flow and differential pressure
- Material, seal, cleaning and product-handling requirements
- Tank level, inlet pressure, pipe layout and feed method
- Control method, duty cycle and power supply
- Destination country and installation constraints
