Rotary Lobe Pump vs Centrifugal Pump

A rotary lobe pump moves liquid in spaces carried around rotating lobes; a centrifugal pump transfers energy through a rotating impeller. A buyer may evaluate lobe pumping when viscosity or product handling needs particular attention, and centrifugal pumping when the duty can be matched to a suitable flow–head curve. Neither name decides the application. Compare the actual liquid, operating temperature, required flow, pressure, suction arrangement and wetted materials before confirming a model.

Quick comparison

Compare operating requirements, not category names alone. This qualitative table describes selection questions; it does not certify a particular product or rank the two options.

Selection questions for the two pump descriptions
Factor	Rotary lobe pump	Centrifugal pump
Operating principle	Positive displacement: rotating lobes carry liquid from inlet to outlet.	Rotodynamic: an impeller adds energy to the liquid.
Liquid behavior	Review viscosity, solids and sensitivity to handling against the rotor and clearances.	Review viscosity, solids and gas content against the impeller and hydraulic design.
Viscosity	Assess operating and startup viscosity, filling of the inlet and required drive torque.	Assess how the actual viscosity changes the applicable performance curve and power demand.
Required flow	Review displacement, speed and internal slip at the specified differential pressure.	Check the operating point where the pump curve and system requirement meet.
Head / pressure	Confirm differential pressure, mechanical limits and a suitable pressure-relief arrangement.	Confirm required head, system losses and the permitted operating region.
Materials and seals	Check all wetted components, seals and cleaning media where relevant.	Check casing, impeller, shaft sealing and other wetted components.
Temperature	Provide both process and cleaning temperatures; check clearances, seals and materials.	Provide the temperature range; check vapor pressure, sealing and material limits.
Installation	Review inlet losses, feed conditions, speed control and maintenance access.	Review available suction conditions, priming, pipework and motor configuration.

When to consider Rotary lobe pump

A rotary lobe pump may be considered when the liquid handling requirement needs a positive-displacement approach, particularly where viscosity, solids or sensitivity to handling must be examined together.

State how the product changes with temperature or shear. Ask for a rotor, clearance and speed review rather than assuming every lobe pump handles the same liquid.
For particles or soft solids, provide size, concentration and damage limits. A pump-family name does not establish solids passage.
If cleaning or hygienic handling is required, specify the cleaning process and documentation needed. Do not infer compliance from appearance or a product title.

When to consider Centrifugal pump

A centrifugal pump may be considered for transfer or circulation duties where a suitable hydraulic design can meet the required flow and head with the actual liquid.

Provide normal, minimum and maximum demand so the operating range can be checked against the pump curve.
For viscous liquids, request performance assessment for that liquid; do not treat water-based data as an unchanged guarantee.
For gas, solids or difficult suction conditions, confirm the specific hydraulic and installation requirements before choosing a standard arrangement.

Key selection factors

Prepare the following information so the proposed configuration can be assessed for the actual duty.

Process and liquid: Identify transfer, circulation or filling duty; include composition, density and any solids.
Product handling: Describe viscosity at startup and operating temperature, and whether the process is sensitive to shear.
Duty point: State flow and head or differential pressure together, with units and the expected operating range.
Suction and installation: Provide tank level, inlet pressure, pipe length, elevation and layout. Discuss priming and available suction head.
Materials and operation: Specify wetted-material constraints, seals, cleaning, temperature range, duty cycle and power supply.

Narrow your shortlist

Use the conditions below to identify what to investigate next. A shortlist still requires confirmation against the complete process and installation.

Conditional decision aid — evaluate the proposed configuration
Requirement / condition	What to evaluate	Pump type or configuration to investigate
Viscous or handling-sensitive liquid	Viscosity at temperature, product sensitivity, rotor choice and speed.	Consider rotary lobe; compare a centrifugal option only after reviewing liquid-specific performance.
Transfer or circulation with a defined flow–head duty	Pump curve, system losses, operating range and suction conditions.	Evaluate centrifugal; retain lobe if other process requirements support it.
Particles or soft solids	Particle size, concentration, abrasion and acceptable product damage.	Evaluate the specific lobe or centrifugal design; neither category confirms suitability.
Changing flow demand	Control method, operating range, power and pressure protection.	Compare the complete configurations rather than motor ratings alone.
Cleaning or material constraints	Contact materials, seals, cleaning temperature and required documentation.	Investigate compliant configurations in either category.

When the answer is not clear

If viscosity, solids, suction conditions or the required duty point are unknown, the comparison cannot reliably select a model. Send the process data and identify what is still unknown. A published range or a visually similar pump is not proof that two products are interchangeable.

Engineering background for this comparison

These references explain general pump principles. HENVO product facts come from the linked HENVO product pages; no external manufacturer specifications are assigned to HENVO products.

Representative HENVO products

These existing products have real product images and populated technical fields. They are examples to investigate, not equivalent replacements or confirmed selections for your process.

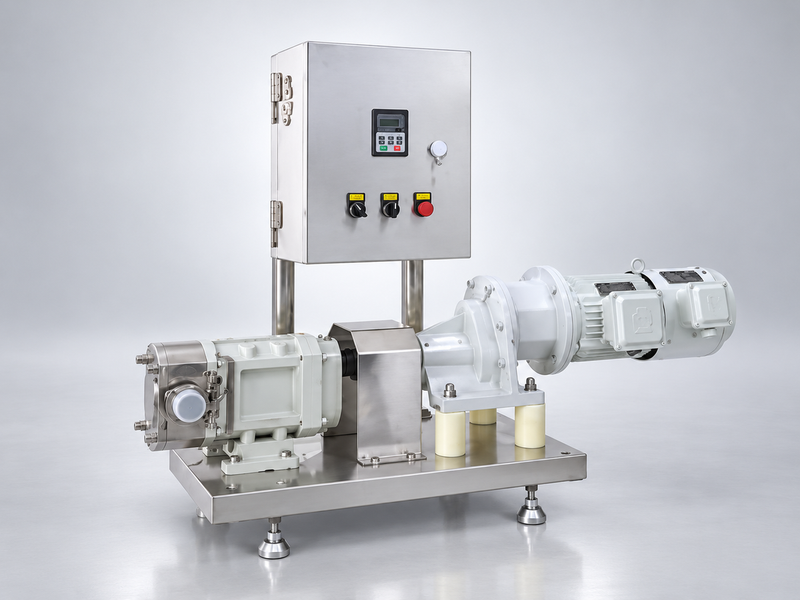

3RP Series Rotary Lobe Pump

Rotary Lobe Pump

View Details

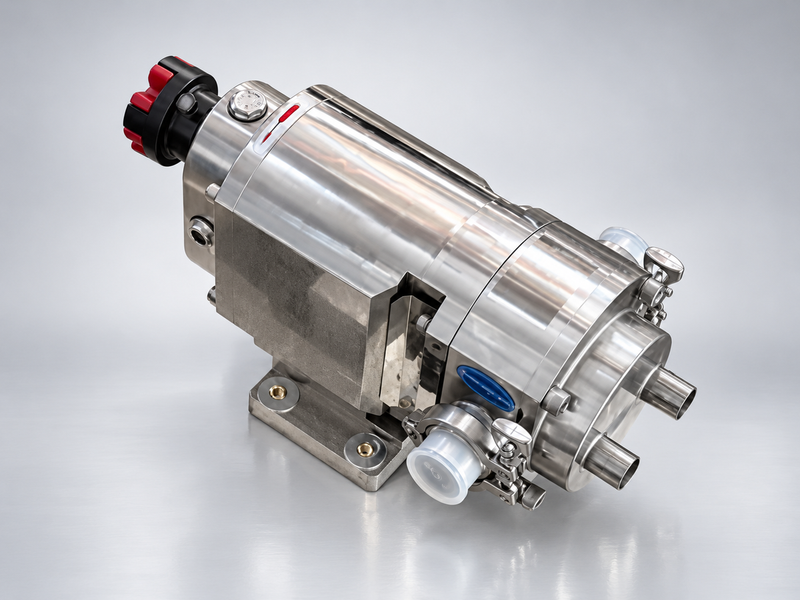

3RP Series Stainless Steel Rotor Pump

Rotary Lobe Pump

View Details

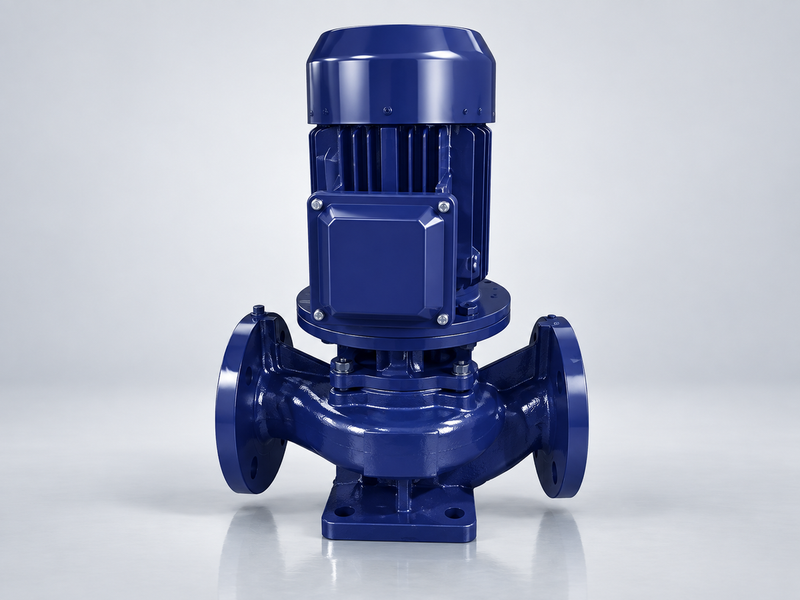

ISG Series Centrifugal Water Pump

Centrifugal Pump

View Details

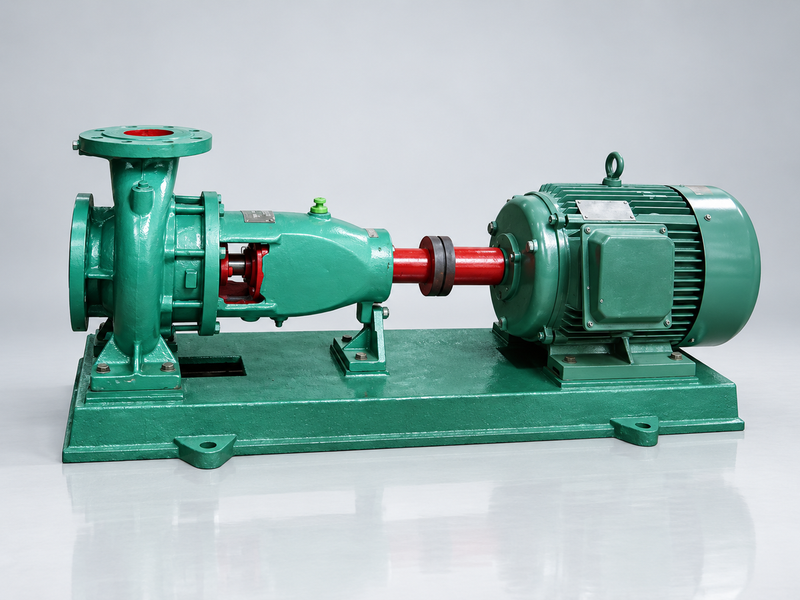

IS Series Centrifugal Pumps

Centrifugal Pump

View Details

Buyer questions

Use these answers to identify the information needed before comparing quotations or requesting a model recommendation.

What is the main difference between a rotary lobe pump and a centrifugal pump?

A lobe pump displaces liquid with rotating lobes. A centrifugal pump adds energy through an impeller. The difference affects how flow, pressure and liquid behavior must be assessed.

Does higher viscosity automatically mean I need a lobe pump?

No. Viscosity is an important input, but temperature, inlet feeding, solids, pressure and the exact pump design also matter. Request a review of the complete duty.

Can I compare these pumps using flow rate alone?

No. Compare flow at the required head or differential pressure, using the actual liquid and operating temperature. Include the suction arrangement and operating range.

Is a rotary lobe pump always suitable for sensitive products?

No. The required handling result depends on the product, rotor design, clearances and speed. Explain the sensitivity and ask for confirmation for that configuration.

How do materials affect the comparison?

All wetted components and seals must suit the medium and temperature. Cleaning chemicals may introduce a separate compatibility requirement. The pump principle does not establish material compatibility.

What should I send before requesting a model recommendation?

Send the application, medium, flow, head or pressure, temperature, viscosity, solids, material constraints and suction layout. Include power supply, duty cycle and destination country.
